RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab

RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab

  • RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab
  • RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab
RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO
Model Number: RV-SSR-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7days
Contact Now
Detailed Product Description
Name: RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab Speed (r/min):: 0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100
Measuring Range (mPa.s):: 50 - 2M 21rotor:50-100K 27rotor:250-500K 28rotor:500-1M 29rotor:1K-2M Repetitive Error:: ±1.5%(Newtonian Liquid)
Temperature Control Accuracy:: 0.1℃ Temperature Control Range:: Room Temperature Plus 10℃-250℃ (300℃ Optional)
High Light:

0.5r/min Digital Viscometer

,

ISO Digital Viscometer

,

0.5r/min High Temperature Viscometer

RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab



RV-SSR-H Digital Viscometer High Temperature Viscometer For Lab 0

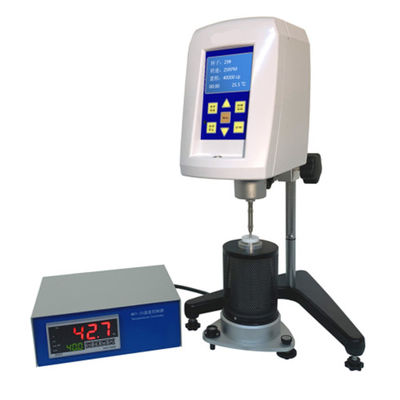

The high temperature viscometer adopts coaxial center structure, uses the small quantity sample adapter, each measurement needs the sample quantity to be very small, the temperature control is quick and accurate. Full range, all stop linearity through the PC interface, with different viscosity of standard samples for measurement correction, to ensure that the instrument has high accuracy and repeatability. Wide range of measurements suitable for testing of different materials.





Main Features:



1. horizontal bubble front, sitting adjustment level can be very convenient.
2. have timing measurement function. Most of the samples we measured were typical non-Newtonian liquids with viscosity other than temperature and shear

In addition to the rate, it is also related to the length of the measurement. To make the measured data comparable, the measured time

It must be consistent.
3. the display accuracy of the measured data is two decimal places.

4. measurement data is displayed directly on the LCD screen without secondary calculation;

5. use small sample adapters, the amount of samples required for testing is very small, usually only 15-20 ml;

6. temperature range: room temperature plus 10℃-250℃(optional 300 heating furnace);

7. viscometer with RS232 interface can be directly connected to the micro printer.

Detailed Technical Parameters:

Model



RV-SSR-H

(NDJ-1C)

HA-SSR-H

HB-SSR-H

(NDJ-1F)

Display liquid-crystal display

Speed

(r/min)

0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100,A total of 18 speeds

Rotor



21,27,28,29 (standard configuration)

Rotor No .0(optional)

Measuring range



(mPa.s)

50 - 2M

21rotor:50-100K

27rotor:250-500K

28rotor:500-1M

29rotor:1K-2M

100 – 4M

21rotor:100-200K

27rotor:500-1M

28rotor:1K-2M

29rotor:2K-4M

400 – 16M

21rotor:400-8M

27rotor:2K-4M

28rotor:4K-8M

29rotor:8K-16M

K = 1,000; M=1,000,000
Test error ±3% (Newtonian liquid)
Repetitive error ±1.5%(Newtonian liquid)
Temperature control range Room temperature plus 10℃-250℃ (300℃ optional)
Temperature control accuracy 0.1℃
Print interface have



Our company also has a number of stepless speed control touch screen high temperature viscometer (right image), the maximum range of 80 million, optional data software, showing shear rate and viscosity rheological curve
