Place of Origin: | China |
Brand Name: | Dahometer |
Certification: | ISO |
Model Number: | DF-1-06 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | negotiable |
Packaging Details: | Standard Export Wooden Case |
Delivery Time: | 7days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000 Set Per Months |
Name: | ASTM D1895 Method A Plastic Apparent Density Meter Powder Apparent Density Tester | Standards:: | ASTM D1895,ISO60 |
---|---|---|---|
Warranty: | 12 Months,Life-long Maintenance | MOQ: | One Set |
Type Of Shipping: | Air Freight | Total Weight: | 3.2kg |
Highlight: | ASTM D1895 Plastic Apparent Density Meter,ISO60 Plastic Apparent Density Meter |

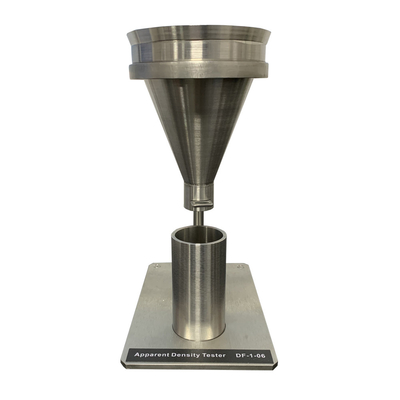

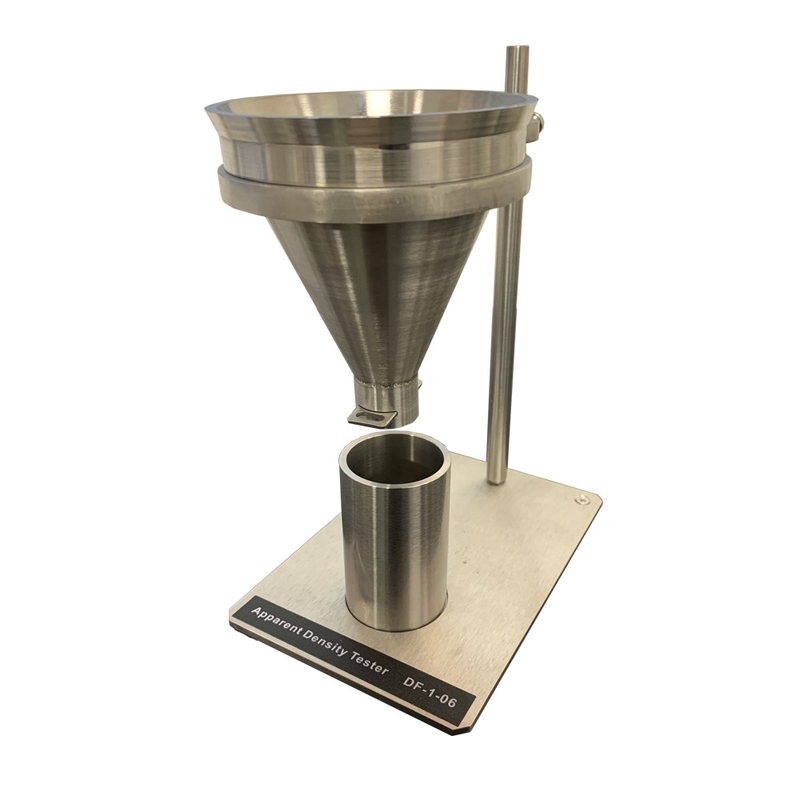

ASTM D1895 Method A Plastic Apparent Density Meter Powder Apparent Density Tester
DF-1-06 can be used to measure the apparent density,bulk factor,and pourability of plastic materials.This instrument is produced in accordance with the method A of standard of ASTM D1895.As for the apparent density,DF-1-06 is more suitable for fine granule and powder.also can be poured readily through a small funnel.
Application:
This instrument is applicable to measure the plastic materials in the form of fine granule and powder.
Standard Accessories:
Holder,funnel,measuring cup,height pad,scraper blade,striker plate,tool and sample spoon.
Standards:
ASTM D1895,ISO60
Procedure:
Close the small end of the funnel with the hand or with a suitable flat strip and pour a 115±5cm³ sample into the funnel.Open the bottom of the funnel quickly and allow the material to flow freely into the cup.If caking occurs in the funnel,the material may be loosened with a small glass rod.After all the material has passed through the funnel.immediately scrape off the excess on the top of the cup with a straightedge without shaking the cup.Weigh the material in the cup to the nearest 0.1g.Calculate the weight in grams of 1cm³ of the material.
Specification:
Model | DF-1-06 | DF-1-07 | DF-1-08 | DF-1-09 | |
Test Method | Method A | Method B | Method C | ISO method R60 | |
Cup |
Measuring volume | 100±0.5 cm3 | 400±0.5 cm3 | 10003±0.5 cm | 53.8±0.5cm |
Inner Dia. | 39.9mm | / | / | 45±5mm | |
Height | 79.8mm | 240±10mm | / | 79.8mm | |
Sampling quantity | 110~120ml | / | / | 60g | |
Funnel | Dia. of lower mouth | 9.5 | 25.4mm | / | 33mm |
Height | 114mm | 230mm | / | 115mm | |
Distance between cap can funnel | 38mm | / | 20~30mm |
