Place of Origin: | China |
Brand Name: | Dahometer |
Certification: | ISO,SGS |
Model Number: | WDW-5S |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case |
Delivery Time: | 8 days |
Payment Terms: | D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 sets per months |
Name: | Dahometer Universal Tensile Strength Measuring Device Controlled By Computer | Max.Load KN: | 0.5 |
---|---|---|---|
Max.Load KG: | 50 | Test Machine Level: | 1 Class |
Optional Maximum: | 1000mm/min | Minimum Test Speed: | 0.1mm/min |
Highlight: | anti splash Tensile Strength Machine,1000mm/min Tensile Strength Machine,SGS Universal strength testing machine |

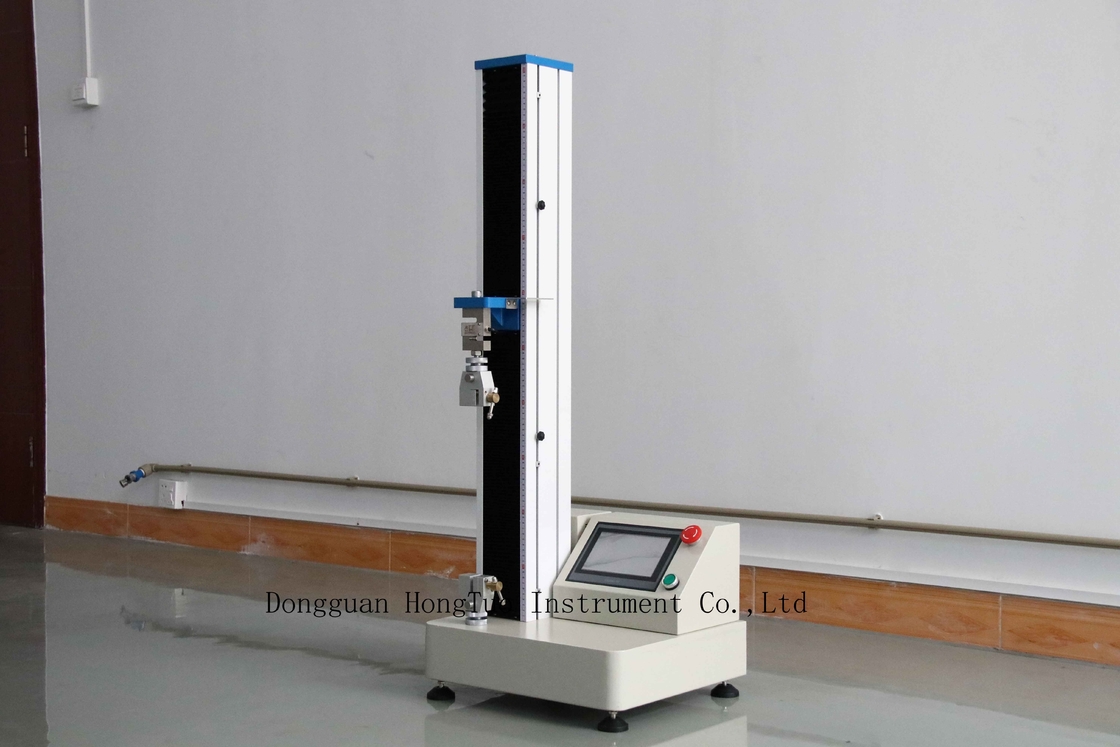

Material Tensile Measuring Instrument Compression Testing Tensile Strength Machine
Universal Testing MachineCharacteristics:
This tester is used specially for kinds of industries, such as fabric, yarn, textitles, paper, wire, clothes, leather, metal, alloy, chemicals, etc. Used for test peel force with different methods. It can perform the 180 and 90 degree, T-shape peeling test and tensile,shearing, spliting, compression
and push strength test with different clamps.
Technical Instruction:
Brand | HongTuo | |||||||||
Model | WDW- | |||||||||
-005 | -01 | -02 | -05 | -1 | -2 | -5 | -10 | |||
Capacity | KN | 0.05kN | 0.1 kN | 0.2 kN | 0.5kN | 1 kN | 2kN | 5kN | 10KN | |
KG | 5kg | 10kg | 20kg | 50kg | 100kg | 200kg | 500kg | 1000kg | ||
lb | ||||||||||
Structure | Double rail structure | Three double rail structure | ||||||||
Unit switching | G,Kg,lb,N,KN | |||||||||
Displacement unit switching | Inch cm mm | |||||||||
Test machine level | 0.5class | |||||||||
Effective force range | 0.4%~100%FS | |||||||||
Force accuracy | Within ±0.5% | |||||||||
Force decomposition | 1/200 000 | |||||||||
Force Power magnification | X1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shifting | |||||||||
Displacement resolution | 0.05mm | |||||||||
Displacement accuracy | Within ±0.5% | |||||||||
Deformation measurement range | 2%~100%FS | |||||||||
Deformation indication accuracy | Within ±0.5% | |||||||||
Large deformation measurement range | (0~800)mm | |||||||||
Large deformation resolution | 0.05mm | |||||||||
Large deformation indication error limit | Within ±5% | |||||||||
Maximum test speed | 500mm/min;optional maximum 1000mm/min | |||||||||
Minimum test speed | 0.001mm/min | |||||||||
Speed accuracy | Within ±0.5% | |||||||||
Beam travel Measuring height |
standard | No grip testing stroke:920mm;With grip testing stroke:320mm | ||||||||
optional | No grip testing stroke:1320mm;With grip testing stroke:320mm | |||||||||
Fixture configuration | One set of tensile grip;can choose other grips | |||||||||
Returning method | Manual or automatic selection, automatically return after the test ends or manually return to the initial position | |||||||||
Stop method | 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop | |||||||||
Safety devices | 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake | |||||||||
Overload protection | Over 10% of maximum load, automatic machine protection | |||||||||
Accessories | 1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate | |||||||||
Optional accessories | Three double rail structure; anti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement tracker | |||||||||
Powder supply | 220V.AC/ 50HZ; 110V.AC/60HZ | |||||||||
Main host size/ weight |
Standard model:Length*Width*Height:450mm*400mm*1160mm / Around 50KG Heightening model:Length*Width*Height:450mm*400mm*1550mm / Around 55KG |
|||||||||
Packing size / weight |
Standard model:Length*Width*Height:550mm*500mm*1400mm / Around 73KG Heightening model:Length*Width*Height:550mm*500mm*1800mm / Around 78KG |
