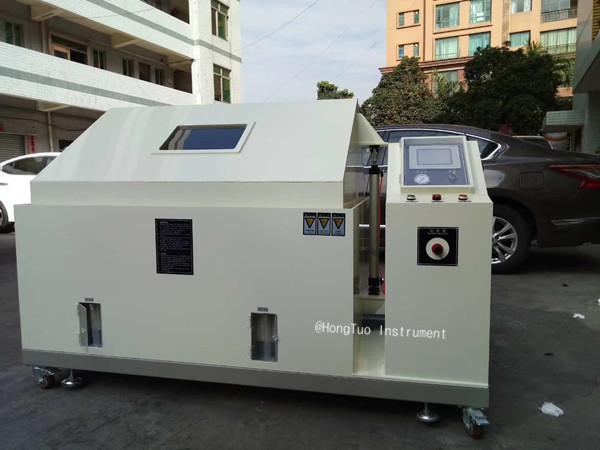

600L Salt Spray Cabinet ASTM B117 Salt Spray For Tinplate

600L Salt Spray Cabinet ASTM B117 Salt Spray For Tinplate

  • 600L Salt Spray Cabinet ASTM B117 Salt Spray For Tinplate
600L Salt Spray Cabinet ASTM B117 Salt Spray For Tinplate
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO
Model Number: DHL-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per months
Contact Now
Detailed Product Description
Name: Salt Spray Cabinet ASTM B117 Salt Spray For Tinplate Standards:: CNS3627,3885,4159,7669,8886 Etc
Interior Dimensions(mm)L*W*H: 1200*1000*600 Exterior Dimensions(mm)L*W*H: 1950*1250*1400
Temperature Accuracy: ±1°C Power: AC220V 50HZ 20A
High Light:

600L Salt Spray Cabinet


Salt Spray Cabinet ASTM B117


Tinplate Salt Spray Chamber

600L Salt Spray Cabinet ASTM B117 Salt Spray For Tinplate




After the surface treatment of various materials, including paint, electroplating, organic and inorganic coatings, anodizing, anti-rust oil and other anti-corrosion treatments, the corrosion resistance is tested to establish the quality of the product.




CNS3627,3885,4159,7669,8886,JISD-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTMB-117,B-268,GB-T2423,GJB 150



1: 5MM imported gray and white impact resistant P.V.C board, high temperature resistance up to 85°C, corrosion resistance.

2: Support shelf:φ10MM glass fiber rod, corrosion resistance.Plastic-steel V-shaped brackets and fiber rods is placed at an angle to ensure that the test object is inclined at 15-30 degrees.

3: Pressure bucket adopts seamless welding by 2.0MM SUS304 stainless steel plate.

4: Using titanium alloy heating tube for heat generation, long service life, high corrosion resistance.

5: The cover is made up of 5MM imported transparent (Germany YLIS) acrylic board. Fine workmanship, beautiful appearance, high transparency.



Model DHL-60 DHL-90 DHL-120 DHL-160 DHL-200
Volume 108L 270L 600L 960L 1200L
Interior dimensions(mm)L*W*H 600*450*400 900*600*500 1200*1000*600 1600*1000*600 2000*1000*600
Exterior dimensions(mm)L*W*H 1060*580*1050 1400*850*1200 1950*1250*1400 2300*1250*1500 2700*1250*1500
Control system 1. Adopt Japan IEC high-speed CPU, stable performance, safety and reliability
2. LED digital tube displaying, humanization interface, all information is clear at a glance.
3. Multi-fault warning protection system, anti-dry heating, anti-overheating
4. High-power SSR output, imported sterling silver relay contacts, with a service life to 106.
5. Multiple time modes, S, M,H can be switched as required.
  6. Multi-control mode for continuous/discontinuous/manual/automatic testing.
7. With manual/automatic demist mode to ensure that the salt mist can’t be leaked, so as to avoid corrosion of the laboratory.
8. Hidden correction method to ensure absolute temperature is under control.


Replenishing system

Automatic/manual water charging system, with the function of automatic/manual replenishment when the water level is insufficient. The experiment will be not interrupted which can be met the diverse environmental requirements for users (Automatic water replenishment only needs to be connected with water pipe).
Heating mode Direct steam has the feature of quick heating speed, uniform temperature distribution, and less stand-by time.
Controlling mode Touch controlling standard operation. With full detection fault pre-warning system. Lights up when fault occurs. Built-in manual defogging function, can be placed or viewed during the experiment to remove the experimental accumulation of salt spray.
Safety protection device

With double over-temperature protection (Italian KGB), the heating power can be switched off automatically in the event of temperature control meter fault or a heating system fault. Avoid overheating damage on the instrument.

Double low water level protection to prevent dry burning damage on the heat pipe of laboratory and pressure bucket

With overload short circuit protection. To prevent damage on the instrument and internal electronic control accessories when an exception occurs. (Equip the low salt level warning of the brine bucket when doing experiment to avoid experimental abnormalities after the brine is finished)

Dosage barrel Built-in fog collection bucket. Compared to the traditional external type, it is less likely to be damaged.
Nozzle Precision quartz glass nozzle. Using 4000 hours without crystallizing can be guaranteed.The spray tower is equipped with a conical dispersive device, which has the functions of guiding fog, adjusting the amount of fog, and evenly falling fog.
Sealing method The inside and outside box is connected to the sealing groove, using water sealing. avoid salt spray leakage.
Temperature range

1: Laboratory temperature: 35°C--50°C (can be set arbitrarily)

2: Pressure bucket temperature:47°C--63°C (can be set arbitrarily)

Heating rate

1: Laboratory, room temperature---→35°C about 35 minutes

2: Pressure bucket, room temperature----→47°C about 15 minutes

Temperature accuracy ±1°C

60/90 model AC220V 50HZ 15A 120 and more models AC220V 50HZ 20A

This machine is suitable for neutral salt spray test (NSS) and corrosion test (AASS,CASS)
