Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-RUV-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | UV-A Wavelength 315~400nm UV Aging Chamber ASTM UV Test Chamber | Standards: | ASTM |
|---|---|---|---|
| Studio Size: | 1140mm × 400mm × 380mm | Wavelength Range: | 315~400nm |
| Standard Test Piece Size: | 75×150mm 48pcs | Recommended Instrument Environment: | 5~35°C, 40%~85%R·H, 300mm From The Wall |
| Highlight: | ASTM UV Aging Chamber,PID Control UV Aging Chamber,ASTM UV Test Chamber |
||

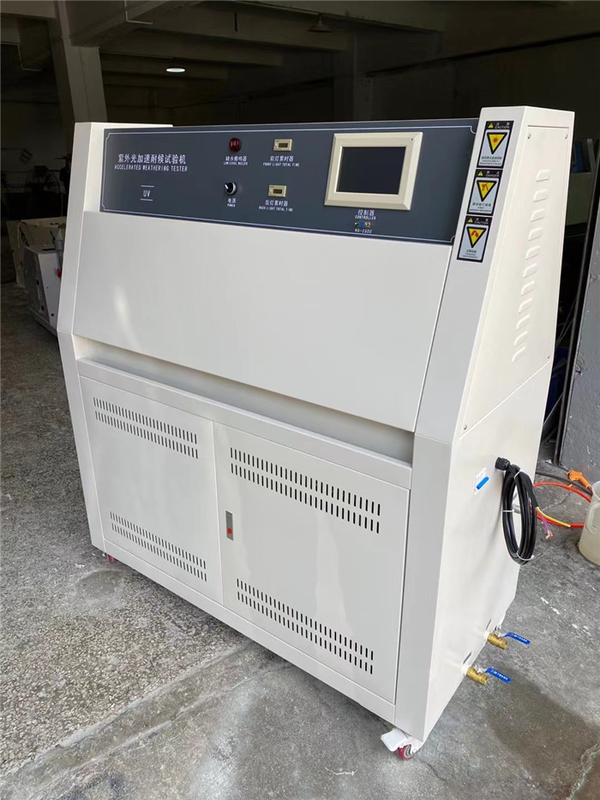

UV-A Wavelength 315~400nm UV Aging Chamber ASTM UV Test Chamber
UV weathering resistance test chamber is used in tests that incorporate UV light,temperature, condensing humidity, water sprays, and irradiance control.
Specification:
| Model | DH-RUV-1 |
| Studio size: | 1140mm × 400mm × 380mm |
| Dimensions: | 1300mm × 500mm × 1460mm |
| Center distance of the lamp: | 70mm |
| The distance between the specimen and the nearest parallel surface of the lamp surface: | About 50mm |
| Wavelength range: | UV-A wavelength range is 315~400nm/UV-B wavelength range is 290~313nm |
| Radiation intensity: | 1.5W/m2/340nm |
| Temperature resolution: | 0.1 ° C |
| Light temperature range: | 50 ° C ~ 70 ° C / temperature tolerance is ± 3 ° C |
| Condensation temperature range: | 40 ° C ~ 60 ° C / temperature tolerance is ± 3 ° C |
| Blackboard thermometer measurement range: | 30~80°C/tolerance is ±1°C |
| Temperature control method: | PID self-tuning temperature control mode |
| Humidity range: | About 45% to 70% R.H (lighting state) / 98% or more (condensation state) |
| Sink requirements: | Water depth is not more than 25mm, and there is automatic water supply controller |
| Standard test piece size: | 75×150mm 48pcs |
| Recommended instrument environment: | 5~35°C, 40%~85%R·H, 300mm from the wall |
