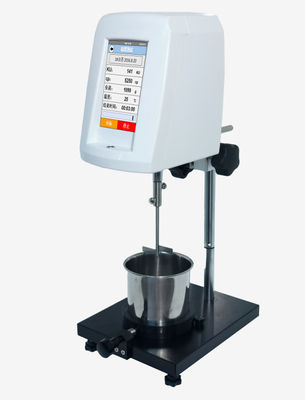

Stormer Viscometer For Ink Digital Krebs Stormer Viscometer Portable

Stormer Viscometer For Ink Digital Krebs Stormer Viscometer Portable

  • Stormer Viscometer For Ink Digital Krebs Stormer Viscometer Portable
Stormer Viscometer For Ink Digital Krebs Stormer Viscometer Portable
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO,SGS
Model Number: DH-STM-2T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per months
Contact Now
Detailed Product Description
Name: Stormer Viscometer For Ink Digital Krebs Stormer Viscometer Portable Control / Display Mode: 5 Inch Color Touch Screen
Measuring Range: 40.2KU – 141.0KU 32g – 1099g 27 – 5250CP Measurement Accuracy: ±3%
Measurement Reproducibility: ±1.5% Measuring Container: 1 Pint

Stormer Viscometer For Ink Digital Krebs Stormer Viscometer Portable
The perfect integration of touch screen technology, high technology in a modern fashion to fast, accurate and convenient measurement of paint, paint or ink viscosity. Powerful, high degree of intelligence. 5 inch color touch screen full, vivid display of various parameters and working conditions. With rich content, convenient operation, high measurement accuracy, good repeatability, stable speed, obvious advantages of strong anti-jamming performance.
1. Main Features:
① The operation interface is simple and clear, and the viscosity test can be done quickly and conveniently through the creation of test program and data analysis;
② Viscosity measurement accuracy: automatic calibration by computer, high precision, small error;
③ The display rich content: in addition to KU, G, CP of the three commonly used parameters, and temperature measurements for the full-scale value percentage (graphics), viscosity curve, range overflow alarm, timing, clock date, etc.;
④ Timing measurement: very practical. We measured the paint, ink, paint is a typical non Newtonian fluid, the viscosity and temperature on the outside (except the temperature rise, but also with the decrease of viscosity) measurement time length. The paint has ink and paint is shear thinning characteristics, the longer the time of measurement of viscosity the smaller, if the viscosity of samples of the same class are comparable, the measurement time must be the same;
⑤ USB interface,insert U disk to copy measurement data directly(optional)
⑥ Self built 30 sets of test procedures: can be compiled, can quickly call;
⑦ Access to 30 sets of measurement data and curves; stored in the viscometer, the data include sample name, KU, G, CP value, measurement date, etc.;
⑧ The real-time display of the viscosity curve: on the screen at any time watch;
⑨ Can connect micro printer and computer: there are two interfaces, serial connection computer, parallel port connection printer;
⑩ The front level: the rotor is vertically placed in the sample, it is important to the accuracy of measurement data. Through the observation level in front of the three foot level, which can conveniently adjust the base level of the bubble will be adjusted to the middle position (the current domestic Stormer viscometer on the market are not level regulating device);
⑪ Rich optional accessories: temperature probe, viscometer thermostat, constant temperature cup, printer, standard viscosity sample, etc.;
DH-STM-2T Strmer viscometer is widely used to determine the paint, ink, paint or other KU values to represent the viscosity of the industry, in line with international standards ASTM, D562 and GB9296 and other related standards.
2. Detailed Technical Parameters:

Control / display mode5 inch color touch screen
measuring range

40.2KU – 141.0KU
32g – 1099g
27 – 5250CP

Measurement accuracy±3%
measurement reproducibility±1.5%
Measuring container1 pint
timingFlexible setting according to sample situation
temperature measurementStandard temperature probe interface (need to match temperature probe)
Self built measurement procedureCan save 30 sets (including sample, measurement time, date)
Save the measurement results30 sets of data (including KU, G, cP, time, curves, etc.) can be saved
viscographReal time display viscosity curve
PrintData, curves can be printed (need to choose printers)
data output interface

USB interface: insert U disk to copy data directly (optional)
RS232 interface: connectable computer

Thermostatic unitOptions (including special viscometer thermostatic bath, thermostatic cup)
working power supply110V / 60Hz or 220V / 50Hz
outline dimension300 × 300 × 450(mm)

Prior to the factory with a variety of Brookfield company's KU value of the standard viscosity liquid correction, accurate data, good repeatability.
