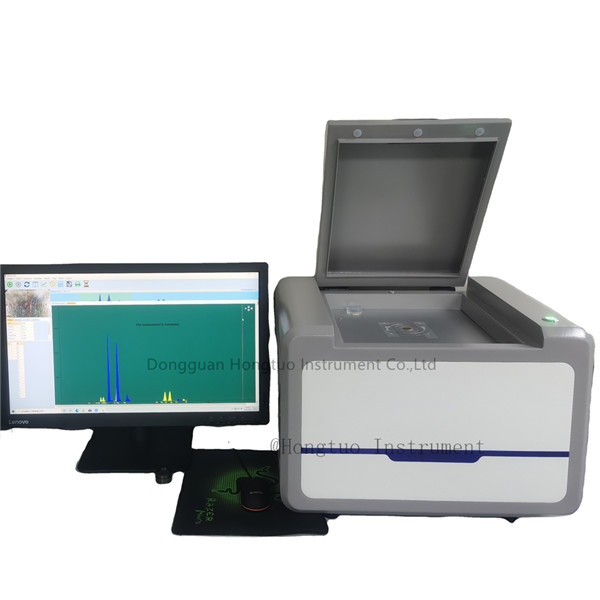

New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS

New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS

  • New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS
  • New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS
New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO,SGS,CE,FCC,ROHS
Model Number: DX-2800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per months
Contact Now
Detailed Product Description
Name: New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS Computer Built In: NO
Detector Type: Si-pin (USA) Multichannel Analyzer: DahoMeter-DMCP
Sample Chamber Size: 380 * 380 * 60 (mm) Test Time: 5sec ~ 30sec

New Xrf Precious Metal Analyzer For Rock Mining Xrf Gold Tester With CE ROHS



Analysis of Precious Metals and Identification of Carats



At present, the use of XRF analyzer for chemical composition analysis and purity determination of precious metals has become a widely used, extremely popular, and supported by national standards, and reliable methods. The use of XRF for the analysis of precious metals is a faster and more economical method of multi-element detection than spark test and chemical reagent testing.



The XRF Analyzer provides users with an easy-to-use, cost-effective inspection technology: no need to inspect the tool into the material of the sample being tested, or damage the sample. The chemical composition information of the alloy can be obtained.thus determines the carat rating of the sample. Whether you are buying precious metals such as gold, selling or producing jewelry, making metals, or recycling used metals, you need a quick way to determine the carat grade and other precious and non-precious metal content with extreme precision. In the first time, to effectively control product quality, set a reasonable price. The xrf analyzer quickly provides accurate analysis of all types of samples.





Advantages and Characteristics of Analysis



  • Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings
  • Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold
  • The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions
  • Super long warranty, confidence comes from pure European spectrometer production technology
  • The instruments have an innovative function that can help customers identify gold-plated samples

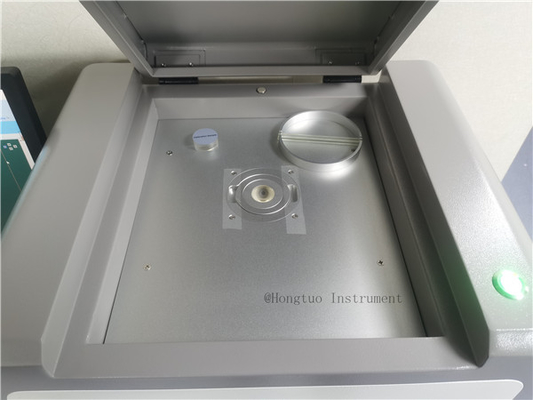

  • The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users
  • Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)
  • We can download and upload test data from network, and it is easy to view and share test results
  • Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer
  • Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect human interface



Application and Examples



Accurate analysis of precious metals Au, Pt, Ag, Pd

On-site gold level identification of gold: 0-24 kt

Check the gold content in scrap metal

Identifying impurity materials

Identify unknown metals



Hardware Performance and Advantages

High-resolution, high-definition camera, convenient operation, fast detection speed, user-friendly interface



Instrument Performance and Configuration



Brand DahoMeter
Model DX-2800 DX-2800M
Computer Built In NO NO
Detector Type Si-pin (USA) SDD(USA)
Multichannel Analyzer DahoMeter-DMCP
Sample Chamber Size 380 * 380 * 60 (mm)
Test Time 5sec ~ 30sec
Measuring Element 72 elements from sodium (Na) touranium (U) between all the elements
Analysis Range 1ppm to 99.99%
Accuracy 0.03% (A≥96%) 0.01% (Au≥96%)
Sample Form Solid, powder, liquid
Tube Voltage 5KV ~ 50KV
High Voltage Power Supply 0 ~ 50KV
Camera HD camera
Filters Selectable customized switches
Analysis Software Qualitative and quantitative analysis software
External Dimensions 480 * 480 * 390 (mm) 480 * 480 * 390 (mm)
Weight 38Kg 38Kg
Instruments Environmental Requirements
Ambient Temperature -5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity 15% ~ 90%
Power Requirements AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby
