80L Temperature Test Chamber Environmental Chamber Manufacturers

Product Details:

Place of Origin:	China
Brand Name:	Dahometer
Certification:	ISO,SGS
Model Number:	DH-80

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case
Delivery Time:	about 7 days
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per months

Contact Now

Detailed Product Description

Features:	LCD Touching Screen	Name:	80L Temperature Test Chamber Environmental Chamber Manufacturers
Internal Volume(L):	80	Weight(kg):	200KGS
Power:	AC220V±10%	Applications:	Car,plastic,metal,food Etc

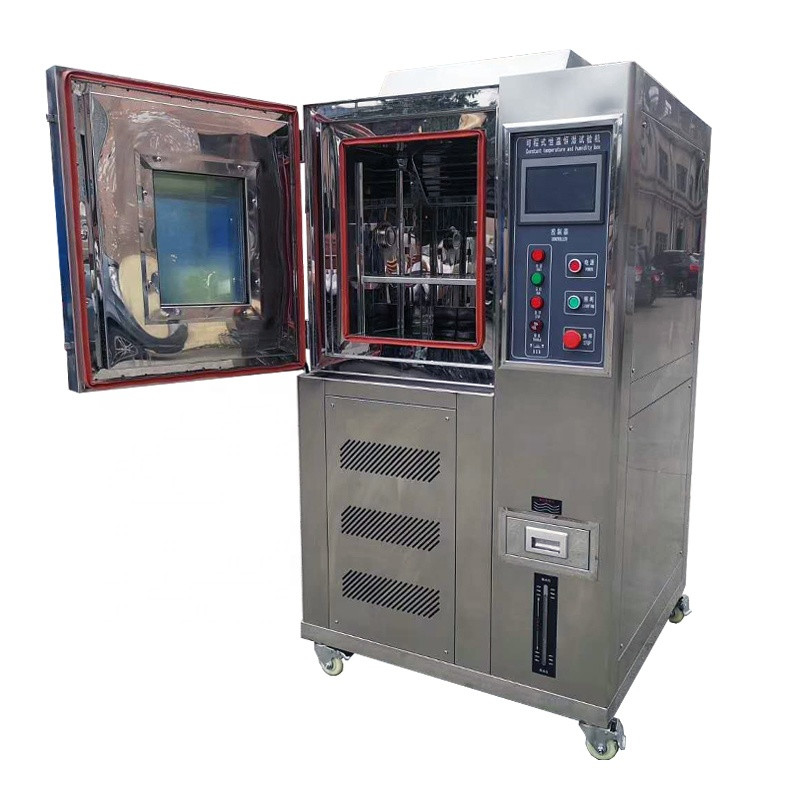

80L Temperature Test Chamber Environmental Chamber Manufacturers

The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Product features:
(1)The outer case is made up of SUS304 steel plate.CNC processing molding,Beautiful design,Reacionless holder,easy operation
(2)Large LCD touching screen
(3)Adopt micro-computer temperature humidity controller.accuracy and reliability
(4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
(5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
(6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outer power cable or signal cable
(7)Adopt high quality fixed PU running wheel in the bottle of machine
(8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%
C. Main technical parameters:

Model		DH-080				DH-150				DH-225				DH-408				DH-800				DH-1000
Interior dimensions (WxHxD)cm		40X50X40				50X60X50				50X75X60				60X85X80				100X100X80				100X100X100
Exterior dimenstions (WxHxD)cm		97X136X97				107X146X107				107X161X117				117X171X127				155X185X130				155X185X147
Internal volume(L)		80				150				225				408				800				1000
Temp.humid range		0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH
Performance	Constancy	±0.2°C;±2.5%RH
	Uniformity	±2°C;±3.0%RH
	Heating up time	100°C		150°C		100°C		150°C		100°C		150°C		100°C		150°C		100°C		150°C			100°C		150°C
		25min		35min		30min		40min		30min		40min		30min		40min		35min		45min			35min		45min
	Pull up time	0	-20	-40	-70	0	-20	-40	-70	0	-20	-40	-70	0	-20	-40	-70	0	-20	-40	-70		0	-20	-40	-70
		30	45	65	100	30	45	65	100	30	45	65	100	30	45	65	100	30	45	65	100		30	45	65	100
Power(k.w)		4.5	5	5.5	6.5	5	5.5	6	7.5	5.5	6	6.5	8.5	6	6.5	7	9.5	6.5	7	7.5	10.5		7	7.5	8	11.5
Weight(kg)		200				250				300				400				600					700
Material	Interior material	Stainless steel plate(sus304)
	Exterior material	Stainless steel plate(sus304)
	Insulation material	Rigid polyauethane foam and glass wool
System	The wind circulation	Centrifugal fan + wide-band forced air circulation (up output and bottom input)
	Refrigerating mode	Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor)
	Refrigerator	R404A R23 U.S.A HONEYWELL
	Heater	Iron-chrome wire heater
	Humidifier	Stainless steel sheathed heater
	Water supply method	Water pump out system
Accessories		Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp, 1set/product description
Safety device		No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices
Power		1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ
