Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO |
| Model Number: | HT-344 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800 sets per months |
| Name: | EN-344 Rubber Sole Shoes Bending Resistance Testing Machine Laboratory | Standards:: | EN-344 |
|---|---|---|---|
| Bending Angle:: | 90 ° | Round Shaft Diameter: | φ30mm |
| Bending Speed: | 0 ~ 135 Revolutions / Minute | Fixture Width: | 144mm |

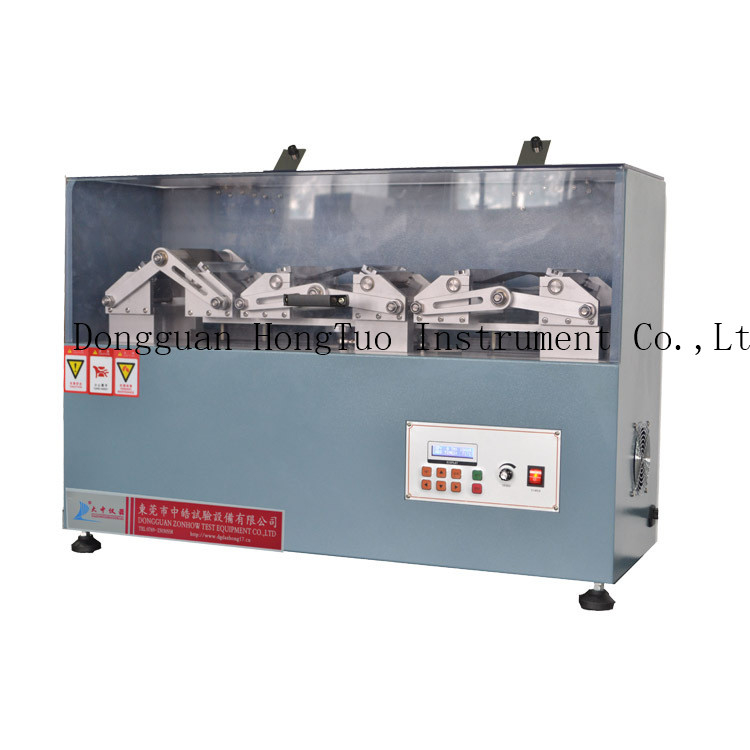

EN-344 Rubber Sole Shoes Bending Resistance Testing Machine Laboratory
Application:

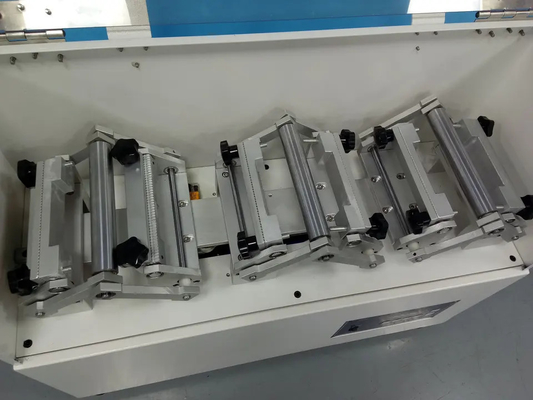

The sole bending tester measures the bending resistance of the sole material under the action of continuous bending. Before the test, a number of holes were punctured in the place where the sole was most bent. The two ends of the sole test piece were fixed between the clamps. During the test, one end of the clamp was fixed and one end was movable. After a certain number of tests, remove the test piece to check the bending change.
Standards:
EN-344
Specification:
| Bending angle | 90 ° |
| Round shaft diameter | 30mm |
| Bending speed | 0 ~ 135 revolutions / minute |
| Fixture width | 144mm |
| Testing at the same time | 3 soles |
| Counter | LED, 0 ~ 99999999 |
| Horsepower | DC, 375W |
| Volume | 85 × 31 × 65cm |
| Weight | 68kg |
| Power source | AV220V, 3A |
