Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS |
| Model Number: | DH-MI-VP |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting package |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 sets per month |
| Features: | Stable And Reliable, Long Life | Name: | MFR And MVR Melt Index Tester Digital Melt Flow Index For Plastic |
|---|---|---|---|
| Standard: | ASTM D1238,GB/T3682, JIS K 7210 | Testing Result: | MFR And MVR |
| Weight Loading Method: | Manual | Power Supply: | AC220V / 50HZ Or AC110V /60HZ |

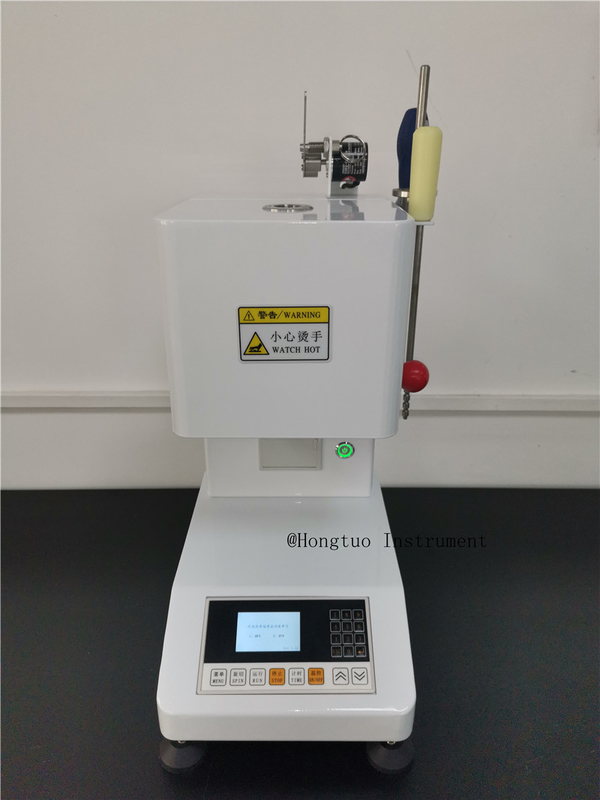

MFR And MVR Melt Index Tester Digital Melt Flow Index For Plastic
A very advanced device for melting characteristics of thermoplastic polymers.The melt flow indexer is the most popular device in the plastic industry to determine material viscosities and is often used to test batch-to-batch consistency.
| Brand | DahoMeter | ||||
| Model | DH-MI-BP | DH-MI-VP | DH-EI-BP | DH-EI-VP | DH-AI-VP |
| Weight loading method | Manual | Manual | electric | Electric | Automatic |
| Testing result | Mass | Mass and volume | Mass | Mass and volume | Mass and volume |
| MFR | MFR and MVR | MFR | MFR and MVR | MFR and MVR | |
| Outlet diameter | Φ2.095±0.005mm,Outlet length:8.000±0.025mm | ||||
| Loading cylinder diameter | Φ9.550±0.007mm,Loading cylinder length:152± 0.100mm | ||||
| Piston head diameter | Φ9.475±0.007mm,Piston head length:6.350±0.100mm | ||||
| Standard test load | A total of 8 full set of weights | ||||
| Temperature control range | Room temperature～400℃(Optional～500℃) | Room temperature ~500℃ | |||
| Temperature control resolution | 0.1℃ | 0.1℃ | 0.1℃ | ||
| Constant temperature accuracy | 0.5℃ | 0.5℃ | 0.2℃ | ||
| Displacement resolution | None | 0.001mm | 0.001mm | ||
| Temperature control 4h drift | No less than ±0.5℃ | ||||
| Cartridge temperature recovery time after feeding | ≤4min | ||||
| Clock range | 0～6000s | ||||
| Clock resolution | 0.1-1s | ||||
| Countdown time setting | Freely set | ||||
| Automatic cutting device | Set the interval time (any adjustable from 2 to 2000s) ,automatically complete the cutting | ||||
| Jog cutting device | Manual button electric cutting | ||||
| Manual cutting device | Manually rotating the handle to cut | ||||
| Weight load accuracy | ≤±0.5% | ||||
| Weight load range | 325-21600g discontinuous, combined load can meet standard requirements | ||||
| Measuring range | 0.1～100g/10min | ||||
| Power supply | AC220V / 50HZ or AC110V /60HZ; Choose different power supply voltages | ||||
| Net weight | 48KG | ||||
| Gross weight | 63KG | ||||
