Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | WDW-20D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 set per months |
| Name: | Custom Material Testing Machine Foam Material UTM Testing Machine | Max.Load KN: | 20 |
|---|---|---|---|
| Max.Load KG: | 2000 | Application Products:: | Plastic,rubber,film,tape Etc |
| Packing: | Wooden Case | After-sale Service: | Yes |

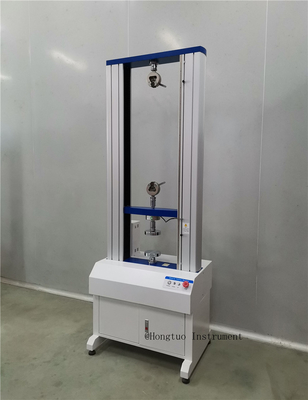

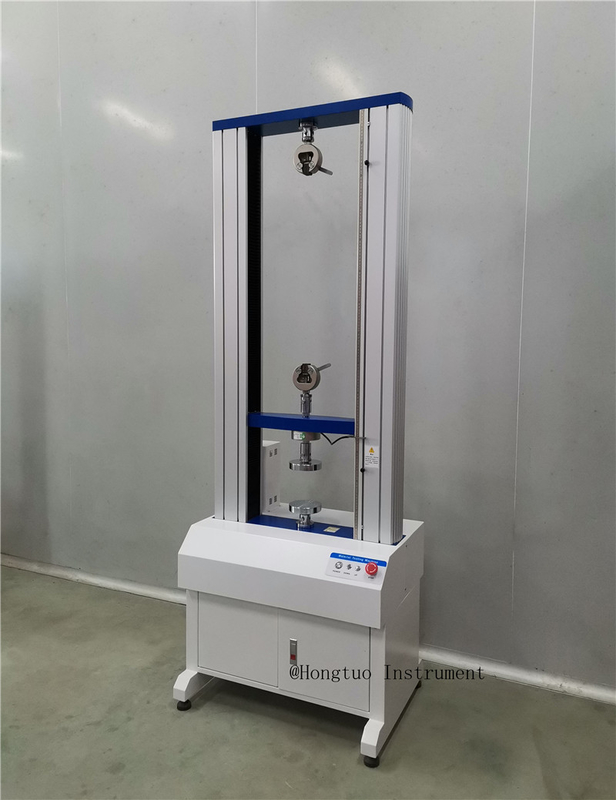

Custom Material Testing Machine Foam Material UTM Testing Machine
electronic universal testing machine is applicable for wide range of tensile compression, bending and shear test for metal, nonmetal, composite materials, medicine, food, wood, plastic material, waterproofing materials, insulation materials, wire and cable, paper, film, rubber, textile and aerospace material etc. And can be customized according to the standards provided by customers all kinds of experimental data processing software and test assistive device.
Specification:
| Brand | HongTuo | |||||||||||||
| Model | WDW-D | |||||||||||||
| -002 | -005 | -01 | -02 | -05 | -1 | -2 | -5 | -10 | -20 | -30 | -50 | |||
| Capacity | KN | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 | 50 | |
| KG | 2 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | ||
| lb | ||||||||||||||
| Unit switching | G,Kg,lb,N,KN | |||||||||||||
| Displacement unit switching | Inch cm mm | |||||||||||||
| Test machine level | 0.5 class | |||||||||||||
| Effective force range | 0.2％～100％FS | |||||||||||||
| Force accuracy | Within ±0.5% | |||||||||||||
| Force decomposition | 1/300 000 | |||||||||||||
| Force Power magnification | Full automatic shift switching | |||||||||||||
| Displacement resolution | 0.005mm | |||||||||||||
| Displacement accuracy | Within ±0.5% | |||||||||||||
| Deformation measurement range | 0.2%～100%FS | |||||||||||||
| Deformation indication accuracy | Within ±0.5% | |||||||||||||
| Large deformation measurement range | (10～1000)mm | |||||||||||||
| Large deformation resolution | 0.05mm | |||||||||||||
| Large deformation indication error limit | Within ±0.5% | |||||||||||||
| Maximum test speed | 500mm/min；optional maximum 1000mm/min | |||||||||||||
| Minimum test speed | 0.01mm/min | |||||||||||||
| Speed accuracy | Within ±0.5% | |||||||||||||
|
Beam travel Measuring height |
standard | No grip testing stroke:330mm；With grip testing stroke:800mm | ||||||||||||
| optional | / | |||||||||||||
| / | ||||||||||||||
| Effective width | standard | 420mm | ||||||||||||
| optional | 650mm | |||||||||||||
| Fixture configuration | One set of tensile grip；can choose other grips | |||||||||||||
| Returning method | Manual or automatic selection, automatically return after the test ends or manually return to the initial position | |||||||||||||
| Stop method | 1.Maximum break value automatically stop 2.Upper and lower limit safety setting stop | |||||||||||||
| Safety devices | 1.Mechanical limit switch protection 2.Emergency stop switch emergency brake | |||||||||||||
| Overload protection | Over 10% of maximum load, automatic machine protection | |||||||||||||
| Accessories | 1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificate | |||||||||||||
| Optional accessories | Anti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement tracker, T-type workbench; | |||||||||||||
| Power supply | 220V.AC/ 50HZ; 110V.AC/60HZ | |||||||||||||
| Main host size/ weight | Length*Width*Height:750mm*500mm*1650mm / around 165KG | |||||||||||||
| Packing size / weight | Length*Width*Height:850mm*600mm*1800mm / around 203KG | |||||||||||||
