Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS,CE |
| Model Number: | HT-5D-CM |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting package |
| Delivery Time: | 3 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800 sets per month |
| Name: | Plastic Izod And Charpy Impact Test Digital Display ISO179-92 | Pendulum Energy: | 1J、2J、2.75J、4J、 5.5J |
|---|---|---|---|
| Impact Speed: | 2.9 M/s ,3.5m/s | Pendulum: | 150° |
| Blade Radius: | R=0.8mm、 R=2mm |

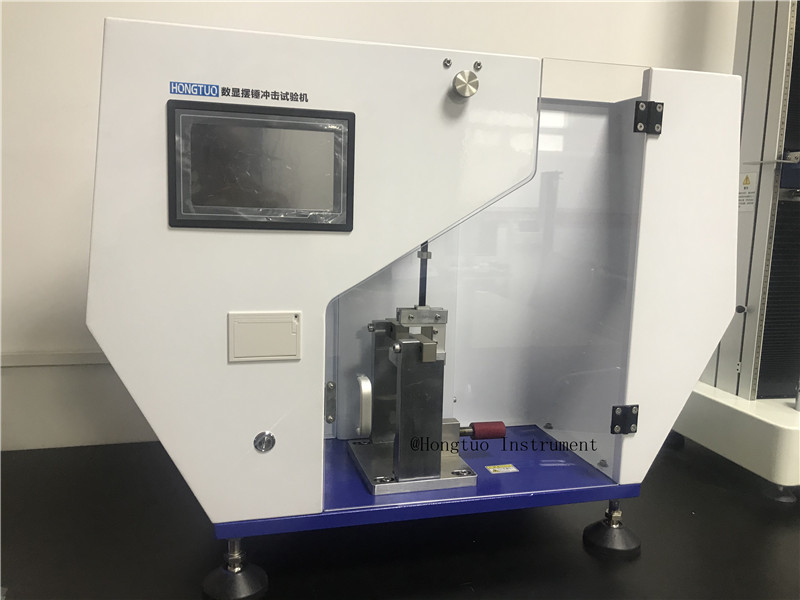

Plastic Izod And Charpy Impact Test Digital Display ISO179-92
We offer Charpy Impact Test equipment and Izod Impact test equipment services for testing metals. These applications are used in many different industries to determine the toughness or impact strength of a material.
Specification:
| Model | HT-5D-CM | HT-50D-CM | HT-5-50D-CM |
| Izod pendulum energy | 1J, 2.75J, 5.5J | 11J, 22J | 1J, 2.75J, 5.5J, 11J, 22J |
| Charpy pendulum energy | 1J, 2J, 4J, 5J | 7.5J, 15J, 25J, 50J | 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
| Charpy impact speed | 2.9m/s | 3.8m/s | 2.9m/s(≤5J), 3.8m/s(≥7.5J) |
| Charpy pendulum center distance | 230mm | 395mm | 230mm(≤5J), 395mm(≥7.5J) |
| Izod impact speed | 3.5m/s | ||
| Izod pendulum center distance | 335mm | ||
| Pendulum angle | 150° | ||
| Measurement accuracy | ±0.1% | ||
| Resolution | 0.03% | ||
| The distance from the izod impact blade to the upper plane of the jaw | 22mm±0.2mm | ||
| Izod edge fillet radius | R=0.8mm | ||
| Charpy impact edge fillet radius | R=2mm±0.5mm | ||
| Charpy impact blade angle | 30°±1° | ||
| Charpy impact edge fillet radius | R=1mm±0.1mm | ||
| Charpy impact support front angle | 5° | ||
| Charpy impact support rear angle | 10° | ||
| Output mode | Printout or U-disk output | ||
| Supply voltage | 110~230VAC 50/60Hz | ||
| Appearance size (L*W*H) | 85cm*37cm*65cm | 106cm*37cm*78cm | 106cm*37cm*78cm |
| Weight | About 80kg | About 100kg | About 120kg |
The sample type meets the requirements of GB1843-80, ISO180-82 and JB/T8761_1998.
