Digital Laboratory Izod And Charpy Impact Test For Plastic

Product Details:

Place of Origin:	Dongguan China
Brand Name:	DahoMeter
Certification:	ISO,SGS
Model Number:	HT-5D-CM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	standard exporting package
Delivery Time:	3 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	800 sets per month

Contact Now

Detailed Product Description

Name:	Digital Laboratory Izod And Charpy Impact Test For Plastic	Pendulum Energy:	1J、2J、2.75J、4J、 5.5J
Impact Speed:	2.9 M/s ,3.5m/s	Pendulum:	150°
Blade Radius:	R=0.8mm、 R=2mm

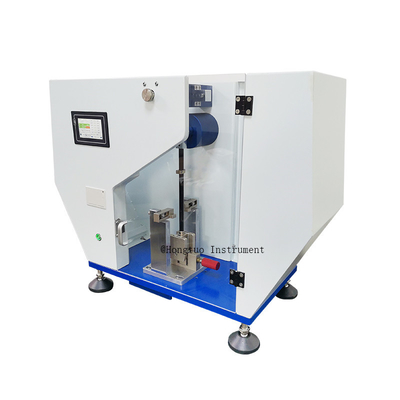

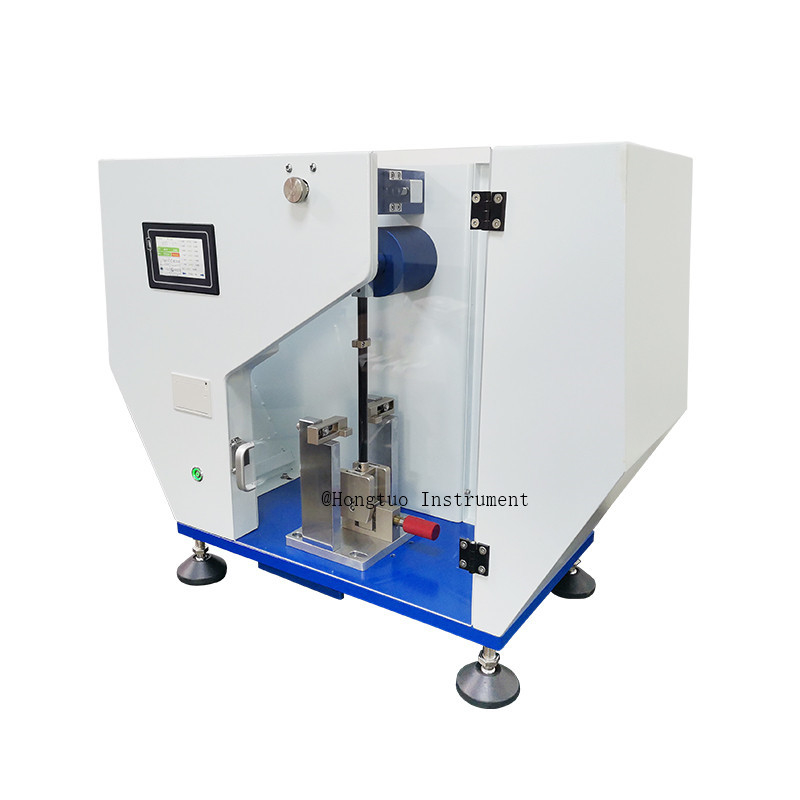

Digital Laboratory Izod And Charpy Impact Test For Plastic

Both Charpy and Izod impact testing are popular methods of determining impact strength, or toughness, of a material.

Specification:

Model	HT-5D-CM	HT-50D-CM	HT-5-50D-CM
Izod pendulum energy	1J, 2.75J, 5.5J	11J, 22J	1J, 2.75J, 5.5J, 11J, 22J
Charpy pendulum energy	1J, 2J, 4J, 5J	7.5J, 15J, 25J, 50J	1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J
Charpy impact speed	2.9m/s	3.8m/s	2.9m/s(≤5J), 3.8m/s(≥7.5J)
Charpy pendulum center distance	230mm	395mm	230mm(≤5J), 395mm(≥7.5J)
Izod impact speed	3.5m/s
Izod pendulum center distance	335mm
Pendulum angle	150°
Measurement accuracy	±0.1%
Resolution	0.03%
The distance from the izod impact blade to the upper plane of the jaw	22mm±0.2mm
Izod edge fillet radius	R=0.8mm
Charpy impact edge fillet radius	R=2mm±0.5mm
Charpy impact blade angle	30°±1°
Charpy impact edge fillet radius	R=1mm±0.1mm
Charpy impact support front angle	5°
Charpy impact support rear angle	10°
Output mode	Printout or U-disk output
Supply voltage	110~230VAC 50/60Hz
Appearance size (LWH)	85cm37cm65cm	106cm37cm78cm	106cm37cm78cm
Weight	About 80kg	About 100kg	About 120kg
