Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | Dongguan China |
| Brand Name: | DahoMeter |
| Certification: | ISO,SGS |
| Model Number: | DH-MA-4 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting package |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800 sets per month |
| Name: | ASTM D4970 Martindale Abrasion Testing Machine Labs Martindale Abrasion & Pilling Tester | Counter Range: | 0~99999 |
|---|---|---|---|
| Pressing Weight: | 2385±10g | Warranty: | 1 Year |
| Abrader Speed: | 50-2r/min | Language: | Chinese/English |

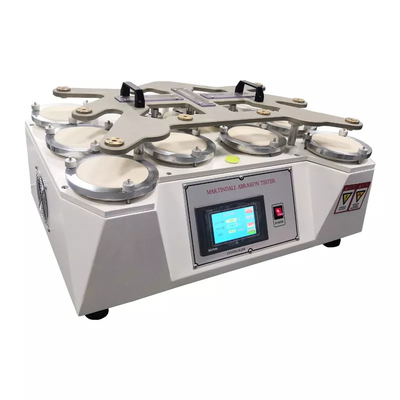

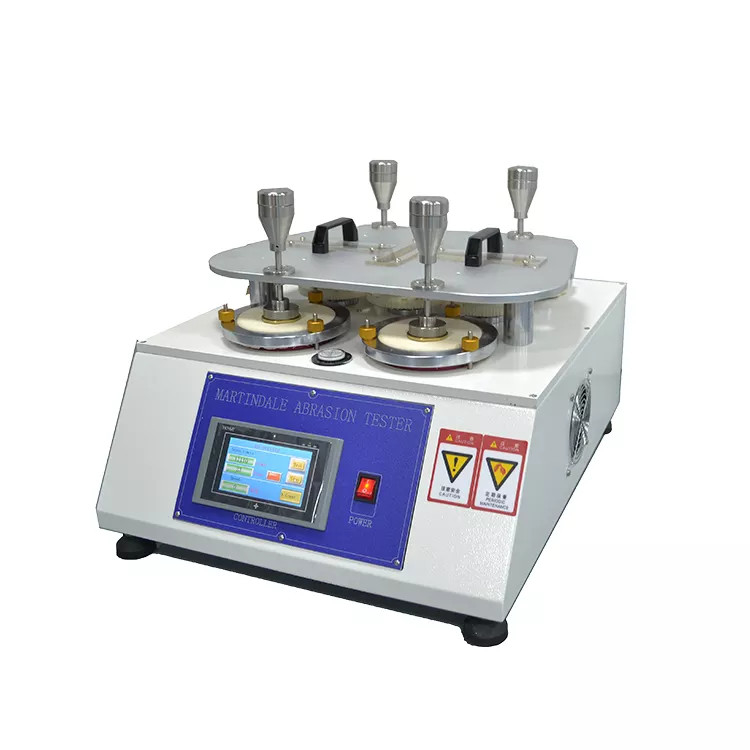

ASTM D4970 Martindale Abrasion Testing Machine Labs Martindale Abrasion & Pilling Tester
Summary:
The textile products are tested according to the Martindale method standard system and its relationship, and the wear resistance of the fabric is tested through this test, and the wear resistance is an important indicator of the quality of the textile product, which directly affects the durability and use of the product. Effect, wear resistance refers to the characteristics of resistance to wear between fabrics or with other substances in the process of repeated friction.
Standards: GB/T21196-2007,GB/T4802.2-2008,GB/T13775,FZ/T20020,ASTM D4970,ISO12945-2ASTM D4966,ASTM D3886,ISO12947,JIS L1096,IWS,TM196,TM112,M&S.
Application: Used for testing the performance of the wearing resistance, abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.
Technical characteristics:
| Number of working position | 4 |
| Counter range | 0~99999 |
| Max stroke | horizontal: 60.5±0.5mm vertical: 24±0.5mm |
| pressure weight: | |
| a. specimen holder:200±1g | |
| b. load piece for apparel & household textiles:395±2g | |
| c. load piece for workwear & upholster:594±2g | |
| d. stainless steel plate:260±1g | |
| abrader diameter : | |
| type A 200g(1.96N) (9KPa),¢ 28.8 -0.084mm | |
| type B 155g(1.52N)(12KPa),¢ 90 -0.10mm | |
| abrader speed | 50-2r/min |
| pressing weight | 2385±10g |
| instrument size | 885×600×410mm |
| power supply: | Ac220V 50Hz 500W |
| weight | 150kg |
