Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-BZH-2.5-10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | PID Self-Tuning Ash Testing Equipment For Sale Ash Content Test Apparatus | Temperature Range: | 100~1000℃ （1200℃） |
|---|---|---|---|
| Volatility: | ±2℃ | Display Accuracy: | 1℃ |
| Furnace Size: | 80*120*200 | Language: | Chinese/English |

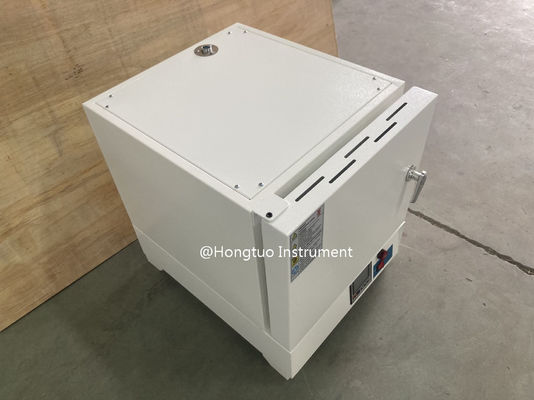

PID Self-Tuning Ash Testing Equipment For Sale Ash Content Test Apparatus
Introduction:
Plastic glass fiber content determination box type resistance furnace is a new generation of energy saving intelligent products of high performance electromechanical integration, mainly used for the determination of plastic glass fiber and other content, is the ideal equipment for plastic processing, production enterprises scientific research departments, colleges and universities.
Specification:
| Model |
DH-BZH-2.5-10 (2.5-12) |
DH-BZH-4-10 | DH-BZH-5-12 | DH-BZH-8-10 | DH-BZH-10-12 | DH-BZH-12-10 | DH-BZH-12-12 |
| temperature range |
100~1000℃ (1200℃) |
100~1000℃ | 100~1200℃ | 100~1000℃ | 100~1200℃ | 100~1000℃ | 100~1200℃ |
| volatility | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
| Display accuracy | 1℃ | 1℃ | 1℃ | 1℃ | 1℃ | 1℃ | 1℃ |
| Furnace size | 80*120*200 | 120*200*300 | 120*200*300 | 160*250*400 | 160*250*400 | 200*300*500 | 200*300*500 |
| Heat up speed |
Average ≤10℃/min |
Average ≤10℃/min |
Average ≤10℃/min |
Average ≤10℃/min |
Average ≤10℃/min |
Average ≤10℃/min |
Average ≤10℃/min |
| Total power | 2.5kw | 4kw | 5kw | 8kw | 10kw | 12kw | 12kw |
| Power supply | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
| Furnace shell material | The outer casing is made of high-quality cold plate, treated with phosphoric acid film salt, and sprayed at high temperature, and the color is computer gray. | ||||||
| Furnace bile material | High-aluminum inner tank is adopted, with good wear resistance, and the high-temperature furnace generates heat on all sides. | ||||||
| Heat insulation method | Insulation bricks and insulation cotton. | ||||||
| Temperature measuring port | The thermocouple enters from the rear and top of the furnace body. | ||||||
| Wiring terminal | The heating furnace wire terminal is located at the rear and lower position of the furnace body. | ||||||
| Controller | It is located under the furnace body, with built-in control system, and the compensation wire is connected to the furnace body. | ||||||
| Heating element | High temperature resistance wire. | ||||||
| Standard packaging | wooden box | ||||||
| Temperature measurement | K-graded nickel-chromium-nickel-silicon thermocouple | ||||||
| Control system | PID adjustment, display accuracy 1℃ | ||||||
| Complete set of electrical appliances | Adopt brand contactor, cooling fan, solid state relay. | ||||||
| Time | The working time can be set, the constant temperature time is reached, and the automatic shutdown. | ||||||
| Overtemperature protection | Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off. | ||||||
| Running mode | Full-scale adjustable constant temperature, constant operation. | ||||||
| After-sale service |
Responsible for remote technical guidance to users; provide spare parts and accessories for equipment in a timely manner; provide technical advice and support during equipment use; immediate response within 8 working hours after receiving customer failure notice. |
||||||
