Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO |
| Model Number: | DH-FC |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export carton box |
| Delivery Time: | 7days |
| Payment Terms: | T/T, D/A, Western Union |
| Supply Ability: | 1000 Set Per Months |
| Name: | Film Coefficient Of Friction Tester ASTM D1894 Coefficient Friction Testing Equipment | Farmar Weight(g): | 200±2 G |
|---|---|---|---|
| Slider Moving Speed(mm/min): | 100±10 | Test Force Accuracy(N): | ±0.02 |
| Power Supply(AC): | 220V | Test Material: | Plastic Film,rubber,paper,etc. |

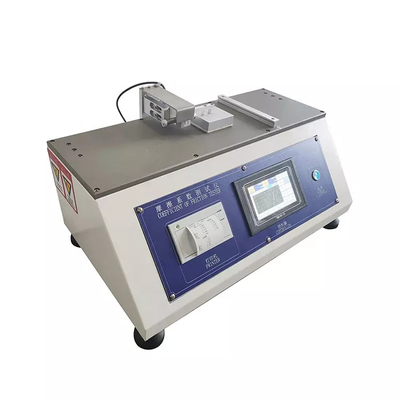

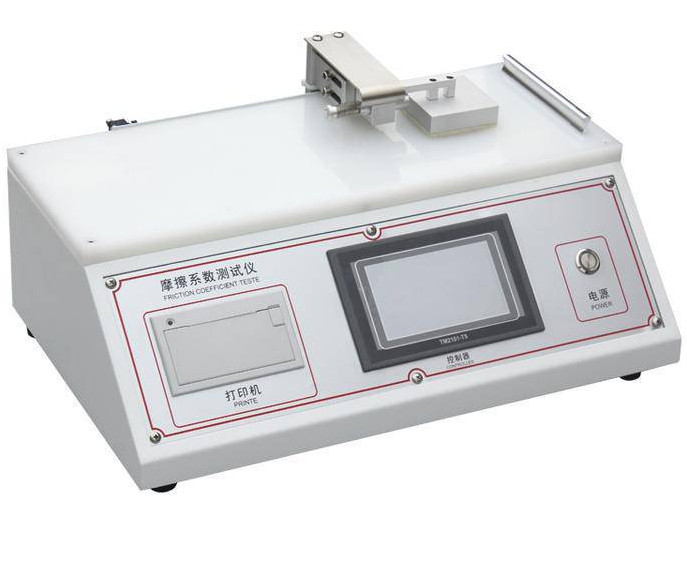

Film Coefficient Of Friction Tester ASTM D1894 Coefficient Friction Testing Equipment
Application:
Will participate in the friction coefficient test of two materials a flat out on the test bench, the other a fixed on a certain weight of the slider, two test surface flat together, under the certain contact pressure, relative movement makes the surface friction force needed for the record. With the test force divided by the gravity of the slider is the friction coefficient values.
Specification:
| Serial No. | Project Name | Technical Specification | Remark | |
| 1 | Farmar weight(g) | 200±2 g | ||
| 2 | Slider moving speed(mm/min) | 100±10 | ||
| 3 | Test force accuracy(N) | ±0.02 | ||
| 4 | Power supply(AC) | 220V, 50Hz | ||
|
5 |
Maximum size of specimen(mm) | Upper sample | 63*63 | |
| Lower sample | 80*200 | |||
| 6 | Dimensions (width x length x height)(mm) | 300x400x180 | ||
| 7 | Weight(kg) | 10 | ||
