| Name: | Electronic Anti Yellowing Rubber Testing Machine For Rubber UV Aging Test Chamber | Inner Box Size:: | 40×40×50cm |
|---|---|---|---|
| Temperature Range:: | Normal Temperature~200°C | Control Mode:: | Automatic Calculation Controller |
| Temperature Display:: | 0.1°C | UV Light Source:: | UV300W Bulb |

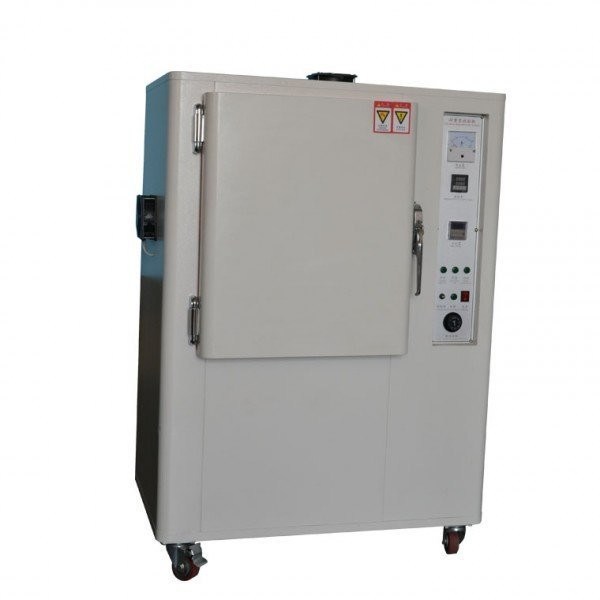

Electronic Anti Yellowing Rubber Testing Machine For Rubber UV Aging Test Chamber
Rubber, plastic and leather yellowing resistance test box, the equipment is developed and manufactured according to ASTM D114 standard. It is suitable for simulating the ultraviolet radiation and heat of sunlight. The sample is subjected to ultraviolet radiation and temperature in the machine. After a period of time, the yellowing resistance of the sample is observed. The degree of yellowing can be judged by the gray scale of contamination as a reference.
Features:
can do two kinds of testing: aging and anti-yellowing
Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
| Inner Box Size: | 40×40×50cm |
| Temperature Range: | Normal Temperature~200°C |
| Control Mode: | Automatic Calculation Controller |
| Temperature Display: | 0.1°C |
| Control Accuracy: | ± 3°C |
| Distribution Accuracy: | ± 1°C(at-100°C) |
| Time Memory: | 0-999 hours, Power Failure Memory Type, with Buzzer |
| Wheel Speed: | 45cm,10±2 round/ min |
| UV Light Source: | UV300W Bulb |
| Standard Accessories: | Shelf Board 2 pieces |
| Heating Method: | Hot Air Circulation |
| Security Devices: | Over-temperature power-off indicator light; Safety overload switch ammeter |
| Manufacturing Material: | Internal Stainless Steel SUS304; External Advanced Baking Varnish |
| Outside Dimension (L×W×H): | 91×55×100 cm |
| Weight: | approx. 87 kg |
| Power: | 1#, AC220V, 15A |
| Standard: | JIS-P8127; ASTM D1148 |
