| Name: | High Sharpness Industrial Projector Equipment Coordinate Optical Measuring Instruments | The Glass Table’s Size(mm): | 196X96 |
|---|---|---|---|
| Measuring Accuracy: | (3+L/50)µm | Testing Before Delivery: | Yes |
| Power: | 1100-240V(AC) | Optional: | Mini-printer, Edge Detector,M2D Software And So On |

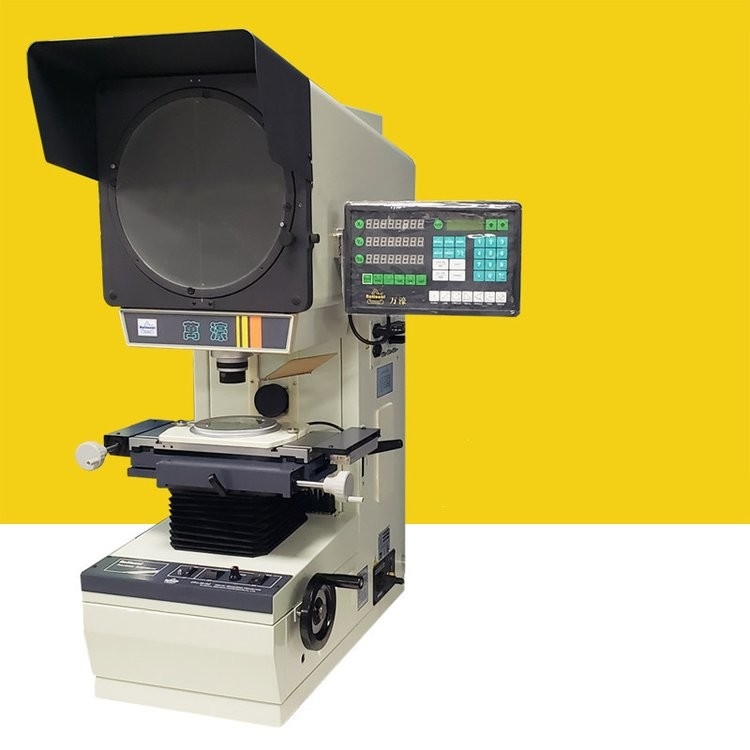

High Sharpness Industrial Projector Equipment Coordinate Optical Measuring Instruments
The optical quality is excellent, the objective lens image is clear, and the magnification is accurate. Under transmitted light illumination, the profile measurement error is less than 0.08%. The projector is of good quality and stable performance.
Usages:
1. Profile projector is mainly used for the measurement of the mechanical parts of the length,
angle, contour and surface shape.
2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.
3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
Specification:
| Model | CPJ-3015 | ||||
| Table | The metal table’s size(mm) | 340X152 | |||
| The glass table’s size(mm) | 196X96 | ||||
| X-axis travel(mm) | 150 | ||||
| Y-axis travel(mm) | 50 | ||||
| Z-axis travel(mm) | 90 for focus | ||||
| Measuring accuracy | (3+L/50)µm | ||||
| Resolution(X-axis, Y-axis) | 0.0005 mm | ||||
| Screen size (mm): | Ø 312 Used range>Ø 300(with the meter line) | ||||
| Screen rotary range: | 0°~360° | ||||
| Rotary angle Resolution | 1´ or 0.01° | ||||
| Lens | Magnification | 10X option | 20X option | 50X option | 100X option |
| Object view | Ø30 | Ø15 | Ø6 | Ø3 | |
| Working distance | 77.7mm | 44.3mm | 38.4 | 25.3 | |
| Max. work-piece height | 80mm | 80mm | 80mm | 80mm | |
| Data processing system | DC-3000 multi-function data processing system ,appearing in English, can be used to gather the data and measure the point ,line, circle, angle and distance | ||||
| Cold | By three fans | ||||
| Illumination | The illumination of transmission and reflection: 24V/150W-halogen lamp. | ||||
| Power | 110V/220V(AC), 50/60HZ, Total power=400W | ||||
| Dimensions | 780*780*1100mm | ||||
| Weight | 180kg | ||||
