Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO |
| Model Number: | HT-KL80 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard wooden case |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300 sets/month |
| Name: | Laboratory Open Rubber Mixer Rubber Open Mixing Mill Two Roll Mill | Roller Diameter (metric/imperial): | 100mm/3in |
|---|---|---|---|
| Roll Surface Width:: | 300mm | Mixing Capacity: | 0.1 ~ 1kg |
| Receiving Device: | SUS304 Stainless Steel Hopper | Temperature Uniformity: | 2.5℃ |

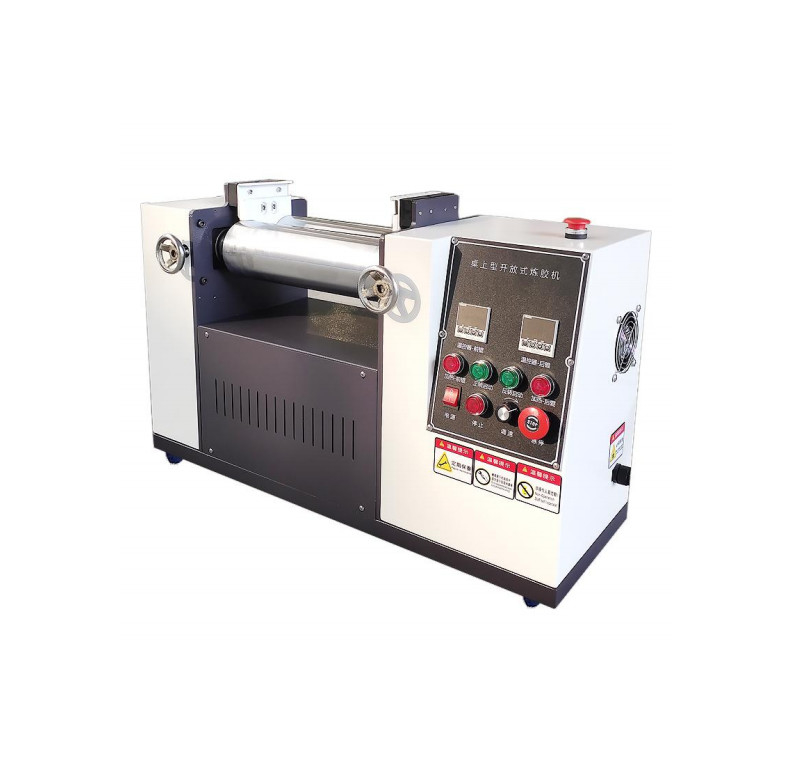

Laboratory Open Rubber Mixer Rubber Open Mixing Mill Two Roll Mill
Equipment Overview:
Rubber factory is used to prepare plastic rubber, mixing rubber or hot smelting, a roller exposed rubber mixing machine. The main working parts are two hollow rollers or drilling rollers that rotate inward in different directions. The front roller installed on the operator side is called the front roller, which can be moved horizontally forward and forward by manual or electric action to adjust the roll distance and adapt to the operation requirements. The back roller is fixed and cannot be moved back and forth. The size of the two rollers is generally the same, each at different speeds relative rotation, raw rubber or rubber material with the rotation of the roller is involved in the gap between the two rollers, subject to strong shear action to achieve the purpose of plasticizing or mixing. The open mill is also used in plastics processing and other sectors.
Technical Parameters:
| Roller diameter (metric/imperial) | 100mm/3in |
| Roll surface width | 300mm |
| Mixing capacity | 0.1 ~ 1kg |
| Receiving device | SUS304 stainless steel hopper |
| Roller temperature | room temperature/room temperature -250℃ |
| Temperature uniformity | 2.5℃ |
| Temperature controller | imported from Korea |
| Roller speed ratio | 1:1.25 |
| Roller hardness | 50 ~ 60HRC |
| Roller treatment | mirror polishing chrome plating |
| Roller spacing | 0.1 ~ 6mm adjustable |
| Speed | 10-40r/min |
| Spacing display mode | scale |
| Safety device | collision type emergency stopper |
| Number of safety devices | 2 |
| Special function | Emergency stop |
| Power | 2.2KW |
| Power supply voltage | AC220V |
| Machine size | 750 [length] ×380 [width] ×600mm [height] |
| Machine weight | ≈128kg |
