Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | GUANG DONG |
| Brand Name: | DahoMeter |
| Certification: | CE FCC |
| Model Number: | DH-RUV-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard exporting package |
| Delivery Time: | 6 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
| Inner Chamber: | 600*500*750mm (W×D×H) | Outer Chamber: | 980*650*1080mm (W×D×H) |
|---|---|---|---|
| Inner Chamber Material: | High-quality Galvanized Sheet. | Irradiation Tube: | UVA-340 |
| Number Of UV Lamps: | 6 Tiles On Top | Temperature Uniformity: | ±2℃ |

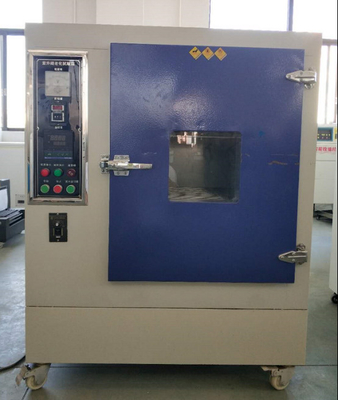

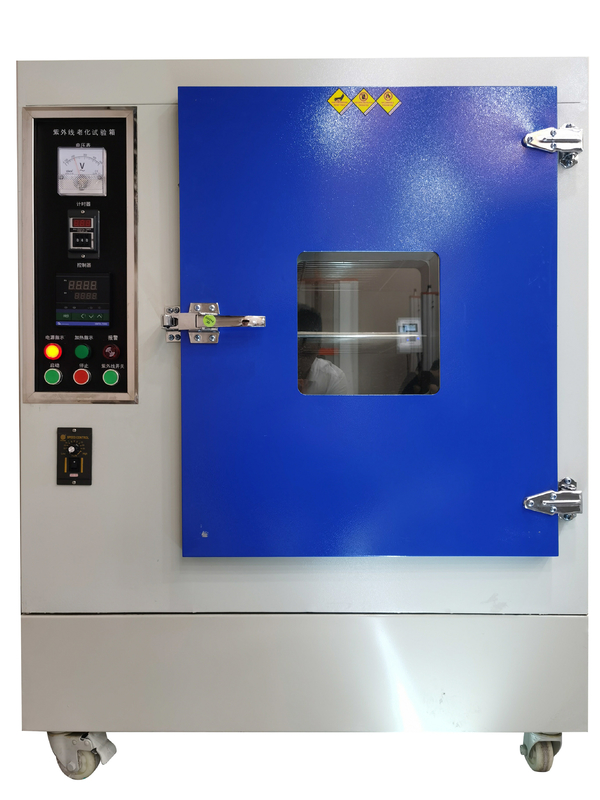

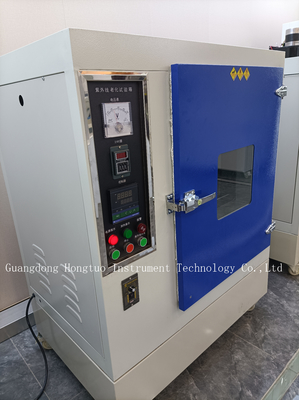

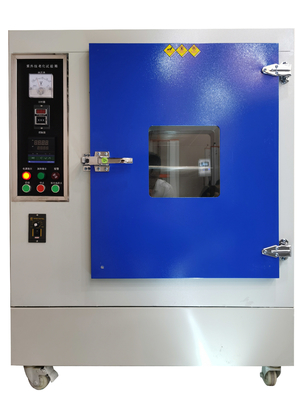

UV Test Box Is Suitable For Testing The Aging Degree Of Materials And Other Climatic Conditions/UV Aging Test Box
Usage:
UV testing chamber is suitable for testing the aging degree for the materials or the products in the climate condition of sunlight,temperature,humidity,condensation
and rain.,etc.Can get the result of color changing,color fading,dulling,chalking,
cracking,muddy,fragility,alveolation,strength retrogression and oxidation .,etc.
Standards:
ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards.
Specification:
1. Inner chamber size: 600*500*750mm (W×D×H)
2. Outer chamber size: 980*650*1080mm (W×D×H)
3. Inner chamber material: high-quality galvanized sheet.
4. Outer chamber material: heat-resistant and cold-resistant board paint
5. Irradiation tube: UVA-340
6. Number of UV lamps: 6 tiles on top
7. Temperature range: RT+10℃~70℃ adjustable
8. Temperature uniformity: ±2℃
9. Temperature fluctuation: ±2℃
10. Controller: Digital display intelligent controller
11. Temperature control method: PID self-tuning SSR control
12. Test time: 0~999H (adjustable)
13. Standard sample rack: a layer tray
14. Power: 220V 3KW
Contact Person: Mrs. Julie Zhong
Tel: 86-13267004347
Fax: 86-769-2318-1253
