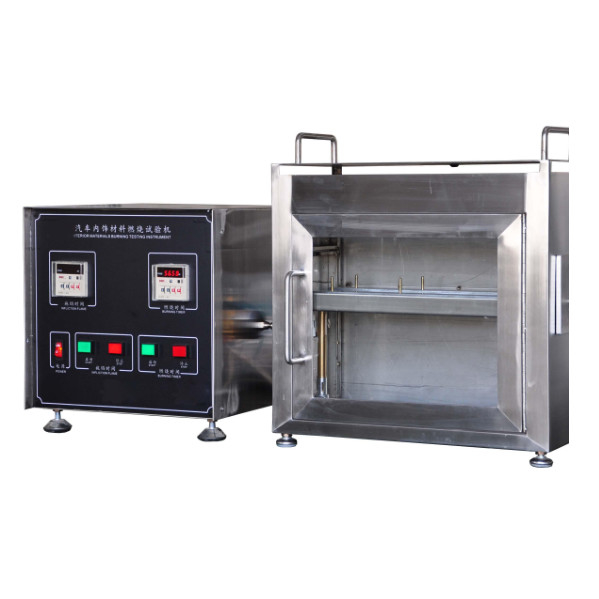

Automobile Interior Combustion Test Machine

Automobile Interior Combustion Test Machine

Introduction:

This machine complies with the test methods of GB8410, TL1010, TSM0500G and American Standard FMVSS571.302, DIN7520 "Combustion characteristics of automotive interior materials". Clamp the sample horizontally on the U-shaped bracket, and ignite the free end of the sample with a flame at a specified height in the combustion box for 15 seconds. to determine whether the flame on the sample is extinguished, as well as the burning distance of the sample and the time it takes to burn the distance . Interior materials include single materials or laminated composite materials used in automotive interior parts, such as seat cushions, seat backs, seat covers, seat belts, headrests, armrests, movable folding roofs, all decorative linings, Dashboard, glove box, indoor cargo shelf, or rear window sill, curtains, floor coverings, etc. And it has the function of high automatic control system, automatic ignition, automatic air supply, automatic timing, manual end of the test and other functions, convenient observation and recording, stable and reliable use.

Standards:

GB8410-2006 (Excluding the requirements for fume hoods in the standard)

The simulated combustion performance safety test items specified by FMVSS 571.302 and other standards

DIN7520 "Combustion characteristics of automotive interior materials"

TL1010 combustion characteristics of automotive interior materials

And GM6090M, GM9070P, FMVSS 302, JIS D 1201, JASO M403, ISO 3795, ASTM D5132, QB/T 2729-2005, TSM0500G

Specification:

1) Box size: combustion box: 385 x 204 x 360mm; electrical box: 310 x 320 x 285mm

2) Flame application time: 0 ~ 99 minutes and 99 seconds can be set

3) After flame time: 0 ~ 99 minutes and 99 seconds can be set

4) Burning angle: 90 ° (ie 0 °)

5) Burner size parameters: nozzle inner diameter Ø9.5mm, nozzle effective length 100mm, with air adjustment holes

6) Flame height: can be adjusted from 20mm to 100mm according to standard requirements

7) Thermometer: 150℃, resolution: 1℃

8) Steel ruler: length: 500mm, accuracy: 1mm

9) Combustion gas: high-purity liquefied gas

10) Product features: This testing machine is composed of a control box, a combustion box body, a combustion lamp, a solenoid valve, a complete set of configuration high-pressure igniter, a thermometer, a signal control line, upper and lower sample brackets and a 500mm/1mm steel ruler.

11) Power supply: AC 220V / 50Hz
