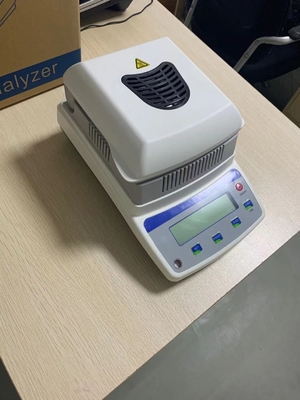

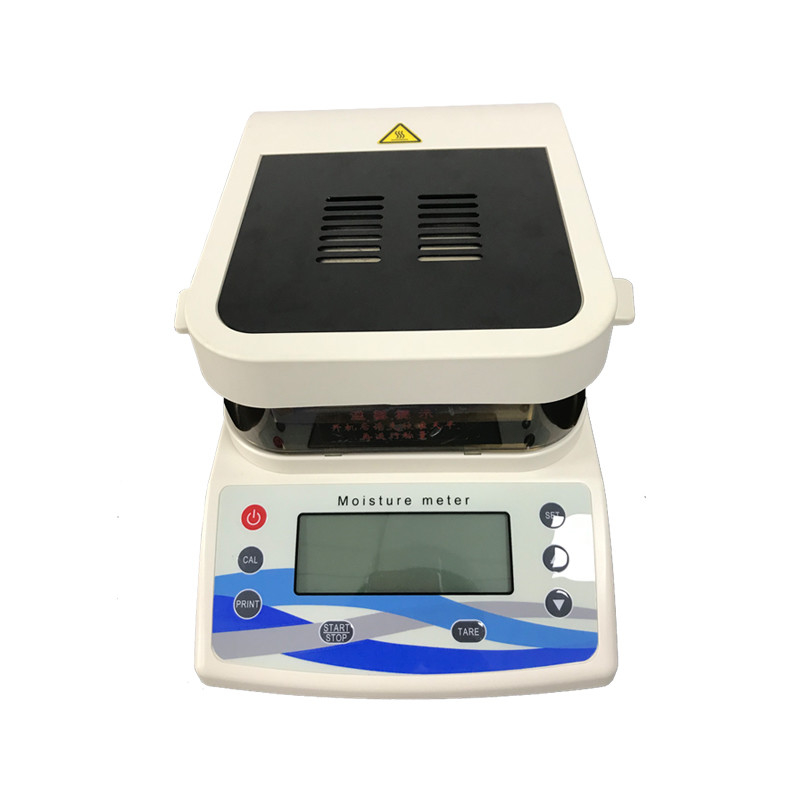

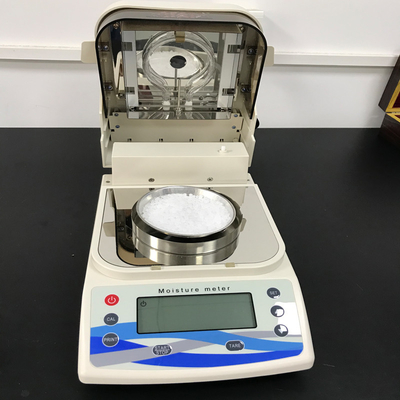

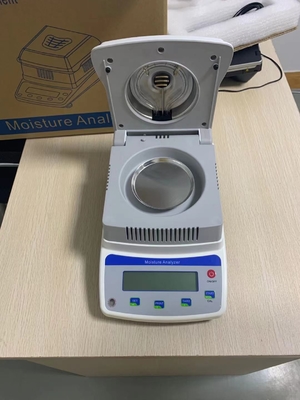

Halogen Heating Moisture Tester DH-60

Halogen Heating Moisture Tester DH-60

Introduction:

The apparatus is the updated one that can test moisture content quick and accurately.It's annular halogen light could have sample heated evenly.easy operation and precise measurement.when weight is measured,sample is quick dried by heating through halogen light.this machine measure continuously and display missing moisture content % immediately.After drying process is done,final measured moisture content value is locked.Compared with international oven heating method,halogen heating would have sample heated evenly in high temperature.the surface of sample would not be damaged easily.It's testing result has the good consistency with international oven heating method.Plus,it is more efficient.In general,it just take few minutes to finish measuring.This machine can display value respectively:moisture value,specimen initial value,final value,measuring time,determination time,temperature initial time,final time.,etc data.In addition,it has the function of connection with computer and printer.

Application:

This instrument has been widely used in all fields which need to measure moisture quickly.such as PP,PE,PVC,PS,PA,PC,PET,PPS,plastic auxiliaries,plastic raw material.,etc.other than that,it would satisfy the measuring requirement for solid,granule,powder,colloid and liquid.

In accordance with the thermogravimetric principle.

Technical Parameters:

(1) sample weight >=0.5g

(2) Moisture measuring range(%):0.01-100

(3) Measuring sample weight(g):0.5-100

(4) Maximum weight(g):100

(5) Minimum weight(g):0.001

(6) Moisture content readability(%):0.01

(7) Temperature indicating range(ºC):0-200

(8) Communication interface:standard RS232 interface

(9) Baud rate:9600/S bit

(10) Communication mode:MC51 series singlechip communication mode 2

(11) Power supply:voltage 220V+-10% frequency 50HZ+-1HZ

(12) Sample temperature:-40ºC-50ºC

(13) Working environment temperature:-5ºC-50ºC

(14) Relative humidity:<=80% RH

(15) Overall dimensions (mm):350 X 200 X 260

(16) Net weight:7.5kg

Product Features:

(1) Small volume and weight

(2) Fast and accurate measurement

(3) Easy operation and automatic testing

(4) Adopte nixie tube to display

(5) Extensive use

(6) The function of connection with computer and printer
