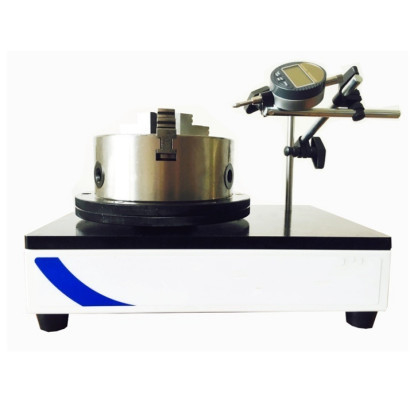

Vertical Axis Deviation Tester

Introduction:

The DH-WRT-16 vertical axis deviation tester is suitable for testing the vertical axis deviation (circular runout) of various round bottle packaging such as ampoules, mineral water bottles, beer bottles, etc. This product complies with national standards, has a simple structure, a wide range of applications, is convenient and durable, and has high precision. It is an ideal testing instrument for pharmaceutical, medical packaging, food, daily chemical and other enterprises and medical inspection institutions.

Principle:

Clamp and fix the bottom of the bottle on the rotating disk so that the mouth of the bottle is in contact with the measuring head of the dial indicator. Rotate 360° to read the maximum and minimum values. 1/2 of the difference between the two is the vertical axis deviation (circular runout). numerical value.

Features:

1)Meet national standards and pharmacopoeia standards

2)Double-bearing integrated rotating shaft, high precision and good stability

3)Three-jaw self-centering chuck clamps specimens with high precision

4)Double pole combination, universal adjustment, can measure different heights and angles

5)High-resolution measuring meter, LCD display, good recognition

Technical Parameters:

1)Measuring range: 0-12.7mm

2)Resolution: 0.001mm

3)Sample size: 3-145mm

4)Measurable height: 320mm

5)Overall dimensions: 330 (L) x220 (W) x270 (H) mm

6)Weight: about 25kg

7)Standard configuration: main unit, dial indicator, anti-claw, key

Standards:

GBT 2637,GBT 2639,GBT 8452,YBB 00192003-2015,YBB 00332002-2015,YBB00032004-2015,QBT 1868,QBT 2665,QB 2357
