Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ISO4662，GB / T 1681 |
| Model Number: | HT-TE-01 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD9600.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |
| Model: | HT-TE-01 | Output: | 0.1-3KG/h |
|---|---|---|---|
| Power: | 750w | Heating Temperature: | Room Temperature-350℃/450℃ |
| Heating Time: | Room Temperature-350℃/30min | Cooling Method: | Three-zone Air Cooling Active Zone Cooling |
Features:

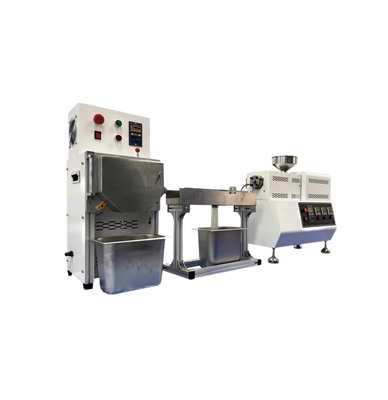

*Product performance of small laboratory twin-screw extruder:
* Professionally manufactured screw and barrel, high processing precision, quality assurance
* Brand motor drive, stable and reliable screw speed control
* Particle size and coarseness can be adjusted. The material is fully plasticized and mixed in the screw. Application scope of small laboratory twin-screw extruder:
* Melting and plasticizing extrusion of materials
* Optimization of extrusion molding process parameters
* Establishment of small experimental lines for film, sheet, pipe, granulation, etc.
Technical Parameter
| Model | HT-TE-01 |
| Screw diameter | 16mm*2pcs |
| Output | 0.1-3KG/h |
| Host size | 0.7*0.2*0.5m |
| Weight | 50kg |
| Extruder center height | 300mm |
| Extrusion direction | Right→Left |
| Power | 750w |
| Voltage | 220V 50HZ [three-pin plug] |
| LD | 16:1 |
| Heating temperature | Room Temperature-350℃/450℃ |
| Heating time | Room Temperature-350℃/30min |
| Temperature control accuracy | ±1℃ |
| Temperature fluctuation | ±2.5℃ |
| Cooling method | Three-zone air cooling Active zone cooling |
| Applicable materials | PP,PC, PVCABS, PE,PA6,PS, PEI,PIMMA,POM,TPU,PTE,PEEK etc. |
| Feeding zone with silent cooling device [air cooling or water cooling optional] | |
| Screw barrel material | 38Crmola, Nitrided |
| Machine size |
1.5m*500mm*500mm (L*W*H) [Extrusion machine + circulating cooling water tank + traction pelletizing device] |
