Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | GB8410，DIN7520， FMVSS 571.302 and other standards |
| Model Number: | DH-QCS-2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD959.00-USD1599.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

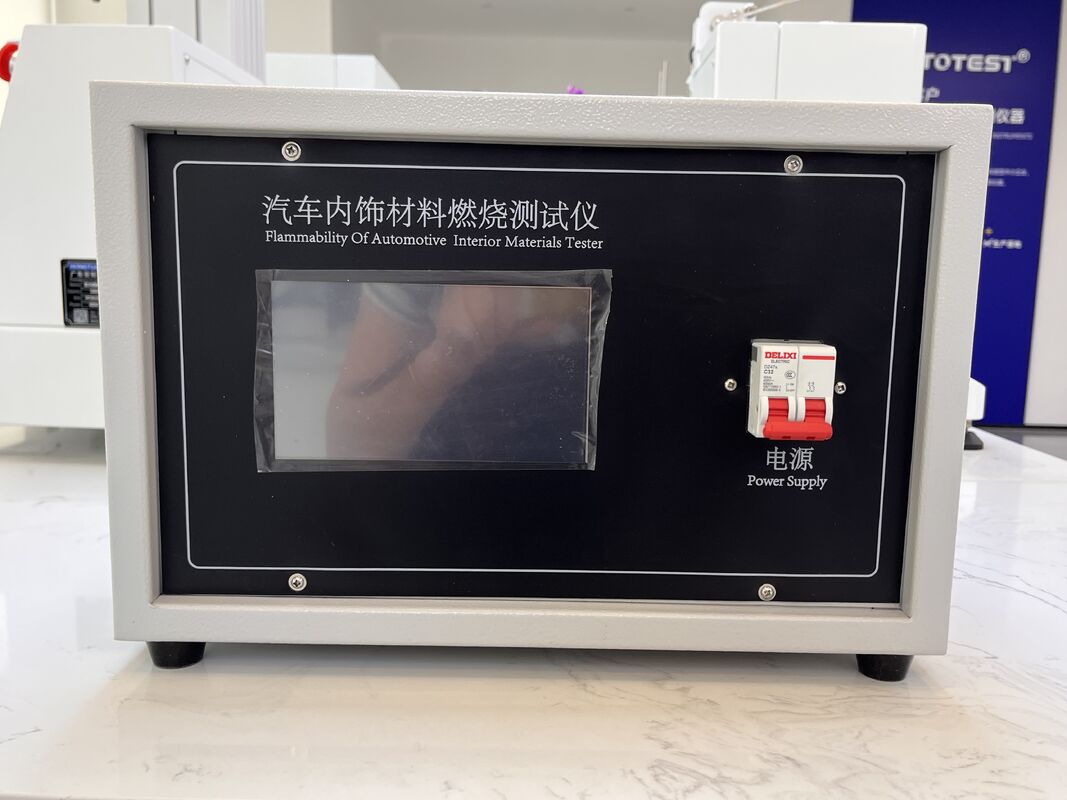

| Name: | Touch Screen Controlled Automobile Interior Combustion Tester | Power: | 150W |
|---|---|---|---|
| Gas: | Uses Coal Gas Or Liquefied Petroleum Gas | Pollutants: | Smoke And Dust |
| Ventilation: | The Smoke Exhaust Pipe At One End Of The Equipment Needs To Be Connected To The Smoke Treatment And Purification System | Other Requirement: | Gas Cylinder With Pressure Reducing Valve (can Adjust To 0.3 MPa) |
The instrument has a reasonable structural design, convenient operation and maintenance, and the ignition system adopts high-voltage electronic ignition, which is safe and labor-saving.
Should be noted that: GB8410-2006 "Combustion Characteristics of Automobile Interior Materials" 4.2.9 requires that the combustion boxshould be placed in a fume hood, the internal volume of the fume hood is 20-110 times the volume of the combustion box, and any dimension of the length, width and height of the fume hood shall not exceed 2.5 times of any of the other two dimensions. The vertical speed of the air flowing through the fume hood at the side beam 100mm before and after the final position of the combustion box should be between 0.10m/s-0.30m/s. The equipment has not been designed for these two regulations. If you have requirements for these two regulations, please choose the -3 model automobile interior material combustion test device.
Installation Conditions (User-prepared)
| Dimensions | Control part size :590mm*210mm*460mm |
| Combustion part size:383*205*355(mm) | |
| Weight(KG) | about 30 kg |
| Test bench | A workbench with a length of not less than 1 meter and a width of not less than 0.75 meters. The exhaust pipe needs to be connected (diameter 10cm) |
| Voltage | 220V±10％,50HZ |
| Power | 150W |
| Water | / |
| Gas | uses coal gas or liquefied petroleum gas |
| Pollutants | Smoke and dust |
| Ventilation | The smoke exhaust pipe at one end of the equipment needs to be connected to the smoke treatment and purification system |
| other requirement | Gas cylinder with pressure reducing valve(can adjust to 0.3 MPa) |
