Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ISO 4593，GB/T 6547、ASTM D374、DIN53370、JIS K6250 |
| Model Number: | DH-CA |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5,100.00-USD5,299 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |
| Name: | Film Thickness Tester For Plastic Film Testing | Power Supply: | AC 220V 50Hz 80W |
|---|---|---|---|
| Test Range: | 0～2 Mm（Standard） 0～6 Mm (optional)； | Resolution: | 0.1 μm |
| Test Pressure: | 17.5±1 KPa（Film）（standard）；50±1 KPa（Paper）（optional） | Feeding Distance: | 0～1000 Mm (optional) |

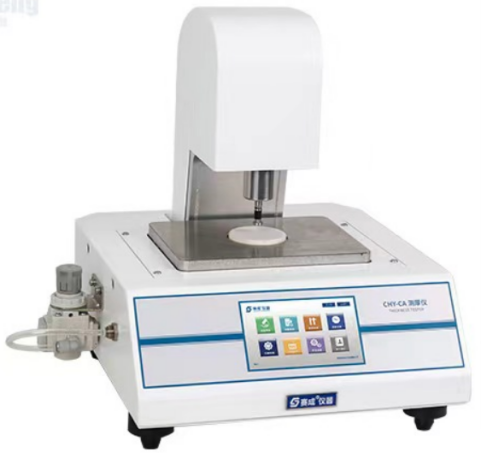

Film Thickness Tester for Plastic Film Testing
Technical Features
l 5 inch touch screen. Microcomputer control, menu-type interface and PVC operation panel, which is convenient for users operation and data viewing;
l Strictly follow the standard design of contact area and measurement pressure, and support various non-standard customization;
l The measuring head automatically rises and falls during the test, effectively avoiding system errors caused by manual operation;
l Two test modes, automatic and manual, which is convenient for users to choose freely;
l Optional auto sampler supports and the relevant parameters setting such as sampling step, number of measurement points and sampling speed;
l lReal-time display of analysis data such as the maximum, minimum, average, and standard deviation
l Standard gauge blocks for system calibration assured the test accuracy and data consistency;
l The standard USB interface facilitates the external connection and data between the system and the computer.
Test Principle
The pre-conditioned specimen is placed on a flat test plane, the pressure foot which is paralleled to the test plane will raise and falls on the upper surface of the specimen with certain pressure applied on. The displacement sensor with the pressure foot will detect the space between the upper and lower surface of the specimen, which is the thickness of the specimen.
Technical Data Sheet
|
Model Item |
DH-CA Film Thickness Tester |
| Test range |
0～2 mm(Standard) 0～6 mm (optional)； |
| Resolution | 0.1 μm |
| Test pressure | 17.5±1 KPa(Film)(standard)；50±1 KPa(Paper)(optional) |
| Contact area |
50 mm²(Film)(standard)；200 mm²(Paper)(optional) Note: one choice of film and paper; customization is available. |
| Feeding distance | 0～1000 mm (optional) |
| Feeding speed | 0.1～99.9 mm/s(optional) |
| Power supply | AC 220V 50Hz 80W |
| Size | 461 mm(L)× 334 mm(W)× 357 mm(H) |
| Weight | 32 kg |
Please Note: Hongtuo is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Hongtuo reserves the rights of final interpretation and revision.
