Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ASTM D3420, NFT54-116 |
| Model Number: | DH-ZJM-06S |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD5,877.00-USD6,199.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |
| Name: | Automatic Pendulum Impact Tester For Plastic Materials | Impact Energy: | 1J，2J，3J (Routine) |
|---|---|---|---|
| Resolution: | 0.001J | Punch Size: | Ф25.4mm，Ф19mm，Ф12.7mm(Non-standard Customized) |
| Displacement Accuracy: | ±2% | Net Weight: | 78Kg |
TECHNICAL FEATURE

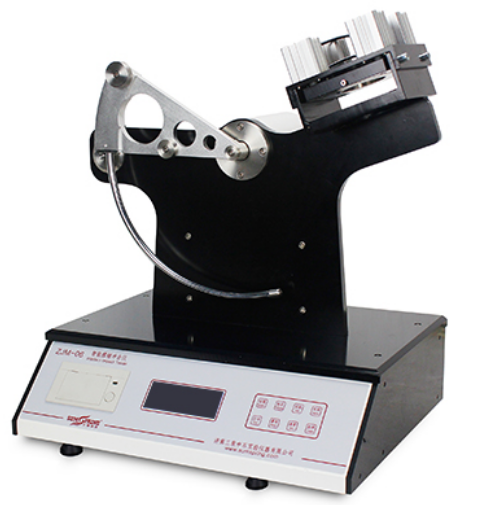

★Auto pendulum impact tester is controlled by micro-computer, with large touch LCD display and HMI, menu interface.
★Electronic measurement mode, test accuracy is up to 0.001J

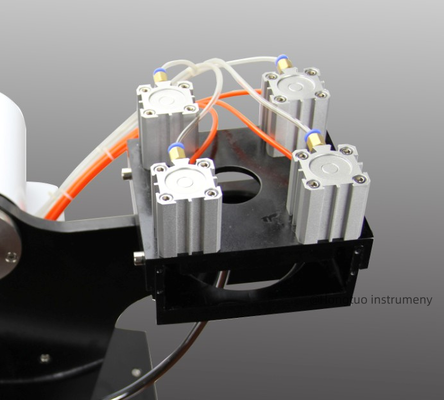

★Pneumatic specimen clamping, pendulum release mechanism and automatic horizontal adjustment system effectively reduce the errors caused by manual operation
★Adjustable range and electronic measurement support various combinations of non-standard test conditions
★The system provides automatic statistics of testing data for users’ convenient viewing
★Micro-computer and RS232 port can be connected with computer, Professional software supports data statistics, analysisand printing
TEST PRINCIPLE
Impact and break through the sample at a certain speed by the half round ball type punch to measure energy consumed by a punch to evaluate film pendulum impact energy
value.
TECHNICAL SPECIFICATIONS
| Impact Energy | 1J,2J,3J (Routine) |
| Resolution | 0.001J |
| Punch Size | Ф25.4mm,Ф19mm,Ф12.7mm(Non-standard customized) |
| Displacement Accuracy | ±2% |
| Sample Holder Diameter | Ф89mm,Ф60mm |
| Height Range | ≤ 600mm |
| Sample Size | 100 mm x 100 mm or Ф100mm |
| Dimension | 540mm×430mm×630mm |
| Net Weight | 78Kg |
ENVIRONMENT REQUIREMENT
| Temperature | 15-35℃ |
| Relative Humidity | No more than 80%,no dewdrop |
| Power Supply | 220V 50Hz |
