Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO |
| Model Number: | KD-220AC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD353.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

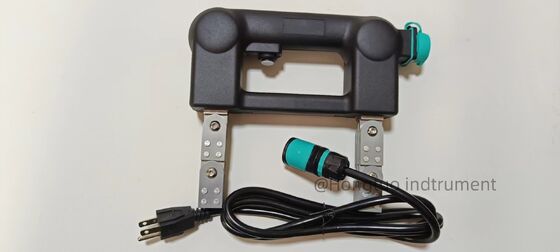

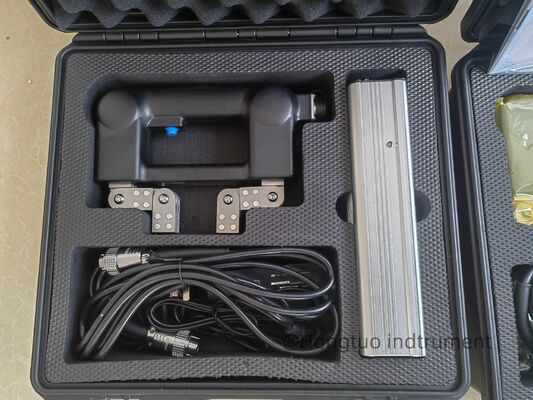

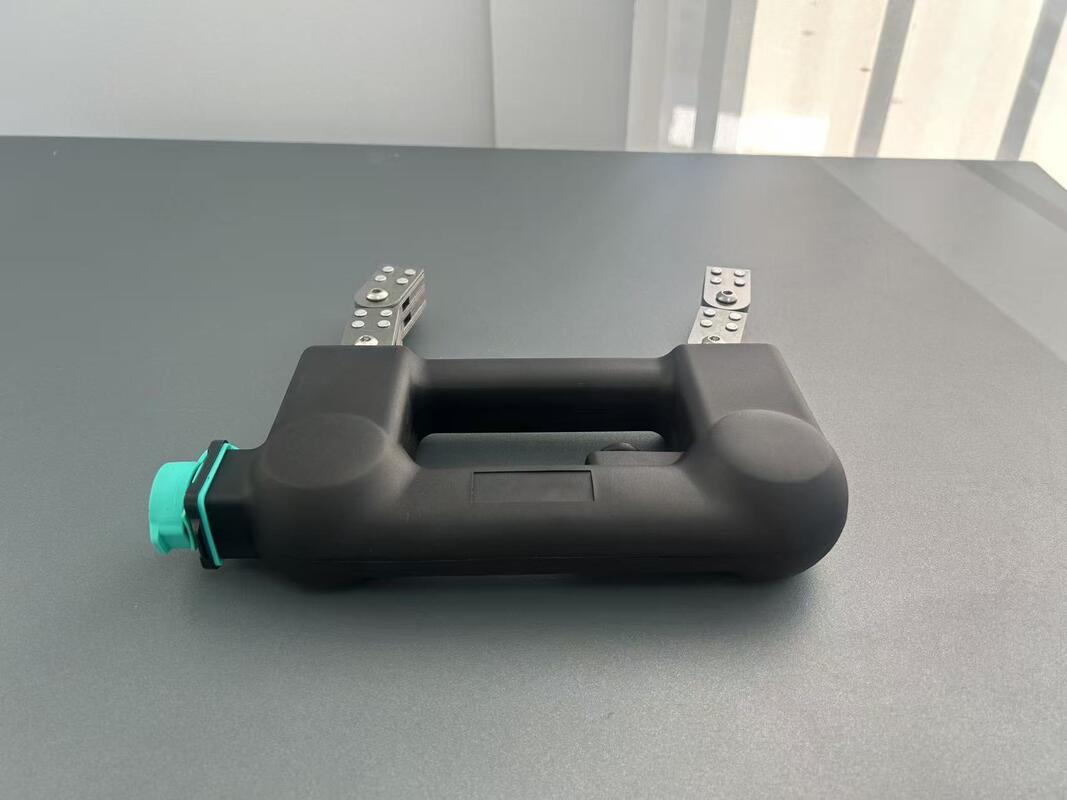

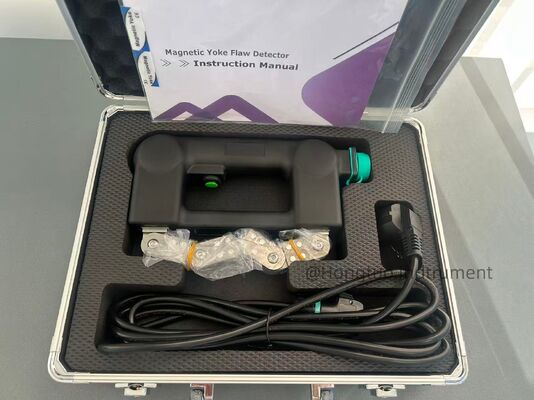

| Name: | Portable Magnetic Yoke Flaw Detector For Weld Inspection And Non-Destructive Testing | Outline Dimension: | Probe 208×52×146mm |
|---|---|---|---|
| Electric Source: | 220V50Hz | Working Current: | AC1.5A |
| The Time Of Work Intervals: | Only A Minute To Open Or Close | Magnetic Moment: | 50~215mm |
Summary:
Hongtuo series magnetic yoke flaw detector, a portable magnetic particle inspection equipment for the magnetization of the ferromagnetic workpiece by magnetic yoke, magnetic on various parts, suitable for oil, shipbuilding, coal, machinery, internal combustion engine parts, standard parts, aircraft manufacturing, auto parts, boiler and pressure vessel, the railway industry, surface and the near surface defect caused by forging, quenching, welding, fatigue, such as boilers and pressure vessels, steel,forging, casting, welding, machining parts etc..
The magnetic yoke flaw detector with AC power supply, The AC power supply with 220V power supply input directly, without any other instrument, simple operation, light weight, easy to carry, so the instrument widely used.
Technical parameter:
|
Assortment /Model Number |
KD-220AC |
| Electric source | 220V50Hz |
| Working current | AC1.5A |
| The time of work intervals | Only a minute to open or close |
| Magnetic moment | 50~215mm |
| Lifting force | AC >5.5kg(53.9N) |
| Weight | Probe 3.1kg |
| Outline dimension | Probe 208×52×146mm |
