Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO1409-1995，GB/T 5549ISO，JB/T 9388-1997 |
| Model Number: | DH-ZY-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD2,689.00-USD6,119.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |
| Name: | Fully Automatic Interface Tension Tester For Surface Tension And Interfacial Tension Measurement | Measuring Mode: | Pt Board Method,Pt Loop Method,or Both |
|---|---|---|---|
| Operating Mode: | Sample Stage Automatic Lifting,Fully Automatic Measurement | Measuring Time: | Low Concentration Sample:3 To 5 Seconds For Pt Board Method,40 To 60 Seconds For Pt Loop Method |
| Data Output Interface: | RS-232 | Power Supply: | 220V,50Hz |

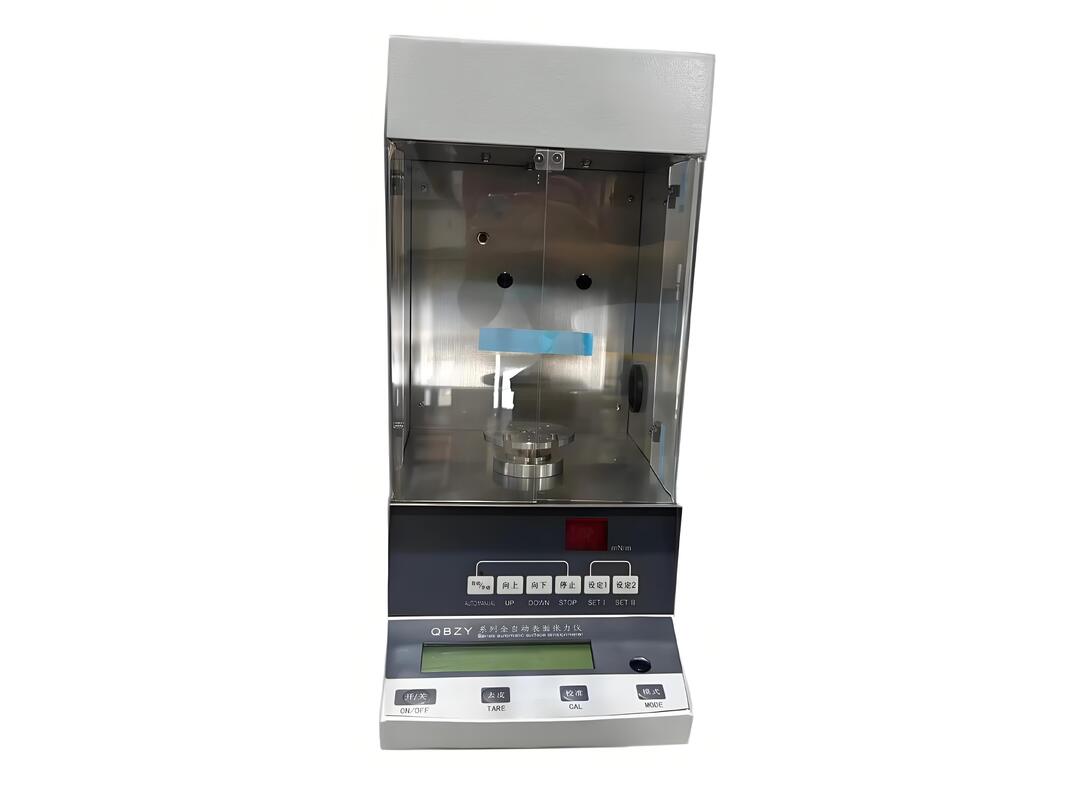

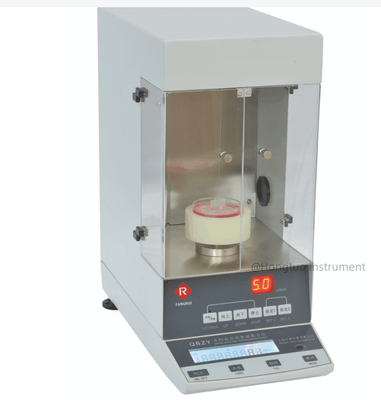

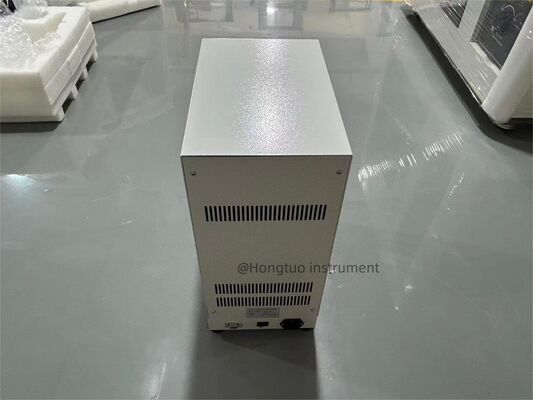

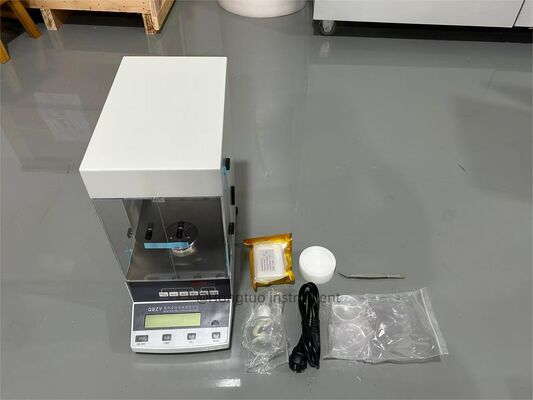

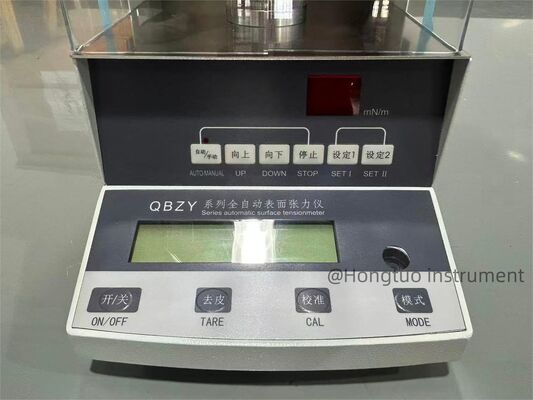

Fully Automatic Interface Tension Tester for Surface Tension and Interfacial Tension Measurement
Features:
(1) The sensor is integrated with high accuracy and high sensitivity electromagnetic technology,and any error in manual operation can be avoided by automatic measuring to enhance the data accuracy and reliability.
(2) A Pt board or Pt loop can be chosen to measure the liquid surface and interface tension.
(3) The Pt board can be used to measure the liquid surface tension in real time,it is practicable for measuring any sample which contains any surface activating agent or volatile matter and whose surface tension will change with time.
(4) The Pt board can be used to measure the surface tension of any medium or high viscosity liquid sample.
(5) Various temperature control are optional to satisfy different measuring requirements.
Application:
Ink,printing ink,oil paint industry:analyzing the wettability in printing and coating.
Cleaning agent industry:analyzing the absorbing rate,property and a suitable concentration of any surface activating agent.
Cosmetic industry:analyzing the dispersibility,stability and wettability of any emulsion or suspending agent.
Electroplating industry:analyzing the surface tension of any electroplating solution for quality control.
Pesticide industry:preparing any additive agent and analyzing the wettability.
Petroleum industry and auxiliary agent industry.,etc.
Main Technical Parameters:
| Model | DH-ZY-1 | DH-ZY-2 | DH-ZY-3 |
| Measuring range | 0-600mN/m | 0-400mN/m | 0-200mN/m |
| Sensitivity | 0.1mN/m | 0.01mN/m | 0.001mN/m |
| Repeatability | ±0.1mN/m | ±0.01mN/m | ±0.02mN/m |
| Measuring mode | Pt board method,Pt loop method,or both | ||
| Operating mode | Sample stage automatic lifting,Fully automatic measurement | ||
| Data displaying | Surface/Interface tension(Pt board method,displaying data directly | ||
| Maximum force(Pt loop method,secondary calculation is necessary | |||
| Displaying mode | Wide visual angle backlight LCD,digital displaying | ||
| Samle constant temperature range | Standard room temperature or 5℃ to 90℃,(Need to choose the sample constant jacket cup and constant temperature circular bath | ||
| Measuring time | Low concentration sample:3 to 5 seconds for Pt board method,40 to 60 seconds for Pt loop method | ||
| Data output interface | RS-232 | ||
| External dimension | 400*200*430mm (L*W*H) | ||
| Net weight | 13kg | ||
| Power supply | 220V,50Hz | ||
