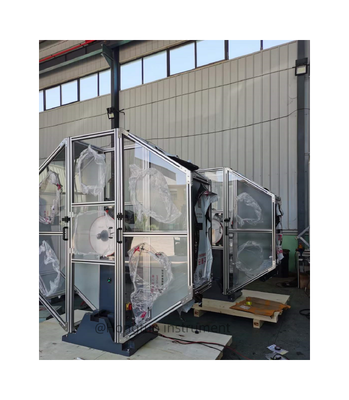

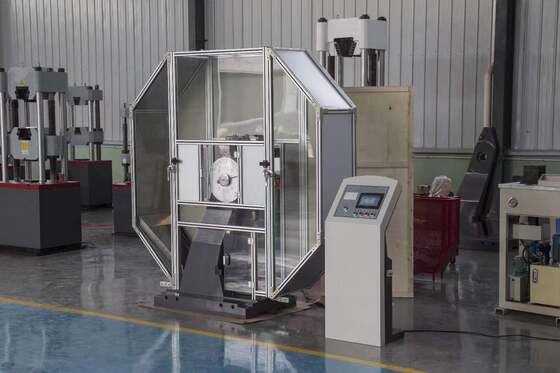

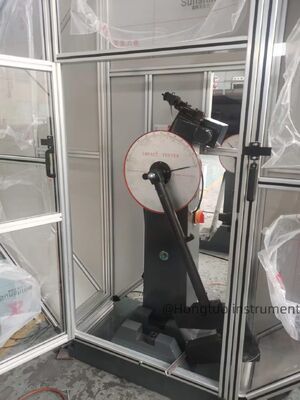

Microcomputer-Controlled Pendulum Impact Tester for Plastic and Packaging Materials

Product Details:

Place of Origin:	China
Brand Name:	Hontotest
Certification:	GB/T 3808-2010,JB/T 7406.1-1994 ,ASTM E23-07a
Model Number:	HT-JBW-450C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD5,851.00
Packaging Details:	Standard export wooden case
Delivery Time:	about 3 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Name:	Microcomputer-Controlled Pendulum Impact Tester For Plastic And Packaging Materials	Angle Accuracy:	0.06°
Maximum Impact Energy (J):	450	Effective Usage Scope:	10%-90%FS
Prebending Angle Of Pendulum:	150°	Energy Display Method:	Dial Gauge, Microcomputer Display, PLC Display Screen

Microcomputer-Controlled Pendulum Impact Tester for Plastic and Packaging Materials

Host and attached parameters

Project	HT-JBW-450C
Maximum impact energy (J)	450
Effective usage scope	10%-90%FS
prebending angle of pendulum	150°
Distance from the pivot axis to the striking center	750mm

Include parameters

project		JBW-450C
pendulum weight N		321.5391
pendulum moment N·m		241.1543
striking velocity		5.24m/s
Axillary span		40mm
Grafting circle radius		R1-1.5mm
砧座斜角		11°±1°
impact angle of edge		30°±1°
impact edge curvature radius	2mm impact edge	2mm-2.5mm
	8mm impact edge	8mm±0.05mm
	8mm impact shoulder radius	0.1mm-1mm
	8mm impact edge width	4mm ±0.05mm
impact edge width		10mm-18mm
Impact punch thickness		16mm
Meet sample specifications (mm)		10×10×55mm,10×7.5×55mm, 10×5×55mm, 10×2.5×55mm

Measurement parameters

Project	JBW-450C
Angle measurement method	photoelectric encoder
Angle accuracy	0.06°
Digital display angle resolution	0.015°
Digital display energy resolution	0.12J
Minimum resolution of dial	≥0.5J
Energy display method	Dial gauge, microcomputer display, PLC display screen

Tractor parameter

Project		JBW-450C
outline dimension	main engine	Install protective netting 2220×900×2220 mm (length×width×height)
weight	main engine	Approximately 1500 kg
power of motor		0.55kW
Power Supply Voltage		Three-phase five-wire system, 380V±10%,50Hz
service environment		No vibration, no dust; room temperature (15-25°C); humidity <70%

Functions and Applications

² This series of impact testing machines features a high-stiffness main unit, microcomputer control, and automatic measurement recording capabilities. It represents the most advanced pendulum-type impact testing machine currently available in China.

² This series of impact testing machines is designed and manufactured in accordance with ISO 148:1998 and GB/T 3808-2010 "Inspection of Pendulum Impact Testing Machines", fully meeting the requirements of domestic and international impact testing standards for metallic materials.

² This series of impact testing machines features powerful functionality, stable reliability, precise testing capabilities, and user-friendly operation. It serves as an ideal testing equipment for evaluating the impact resistance of metallic materials under dynamic loads and determining material toughness and brittleness.

² This series of impact testing machines is widely applicable to various industries including scientific research institutes, testing institutions, universities, aerospace, metallurgy, mechanical manufacturing, pressure vessels, ships, vehicles, bridges, and wind power. They are designed for precision material research, material analysis, material development, material selection, process improvement, and quality control.

² This series of impact testing machines also represents one of our company's flagship products and serves as the mainstream model in market sales. With over 600 units produced and sold to date, extensive practical testing and continuous improvements have resulted in mature technology and processes, high reliability, and low failure rates, earning widespread acclaim and popularity from both the market and end-users.

Microcomputer-Controlled Pendulum Impact Tester for Plastic and Packaging Materials
