Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ISO 2813 |
| Model Number: | DH-WG60A |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD299.00-USD399.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

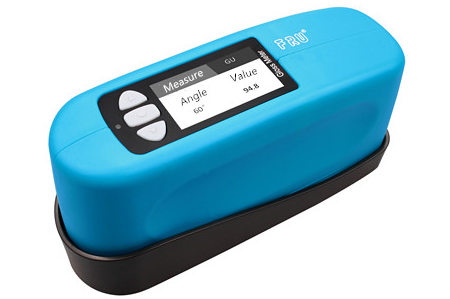

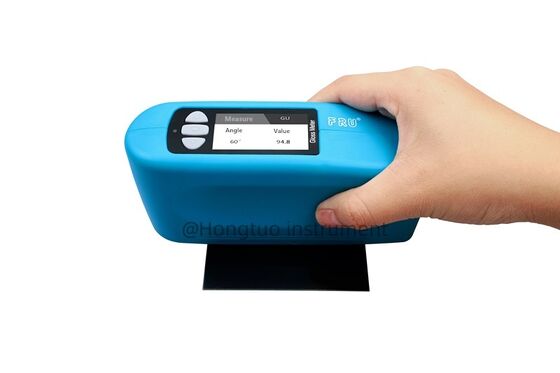

| Name: | Precision Gloss Meter For Surface Gloss Measurement And Testing | Standard Board: | Provide Calibration Criterion |
|---|---|---|---|
| USB Cable: | Connect Instrument To PC | Power Adapter: | Standard + 5V, 2A External Power Suppl |
Features:
(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.
(2) Manually entering standard samples gloss data;
(3) Humanized design, good man-machine communication interface;
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
(8) USB communication interface to communicate with PC;
(9) PC software can be extended more functions.
DH-WG60A specification:
|
Specification |
Unit | Single Gloss Meter | Triangle Gloss Meter |
| Measuring Angle | degree | 60° | 20° 60° 85° |
| Measuring Range | GU |
60°: 0-1000
|
20°: 0-2000 60°: 0-1000 85°: 0-160 |
| Measuring Spot | mm |
60°: 9x15
|
20°: 10x10 60°: 9x15 85°: 5x18 |
| Division Value | GU | 0-1000: 0.1 1000-2000: 1 | 0-1000:0.1 1000-2000:1 |
| Repeatability | GU | 0-100:0.2 >100:0.2% | 0-100:0.2 >100:0.2% |
| Indication Error | GU | ±1.5 | ±1.5 |
| Zero Error | GU | 0.2 | 0.2 |
| Working Temperature | ℃ | 10℃ - 40℃ | 10℃ - 40℃ |
| Storage Temperature | ℃ | -10℃ - 70℃ | -10℃ - 70℃ |
| Humidity Range | / | Relative humidity less than 85%, without condensation | Relative humidity less than 85%, without condensation |
| Power Adapter | / | Section 2 5 alkaline batteries/power adapter | Section 2 5 alkaline batteries/ power adapter |
| Volume | mm | 159x49x72 | 159x49x72 |
| Weight | g | 500 | 500 |
