| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 |
| Model Number: | DH-DH-CS-730 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD14,480.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

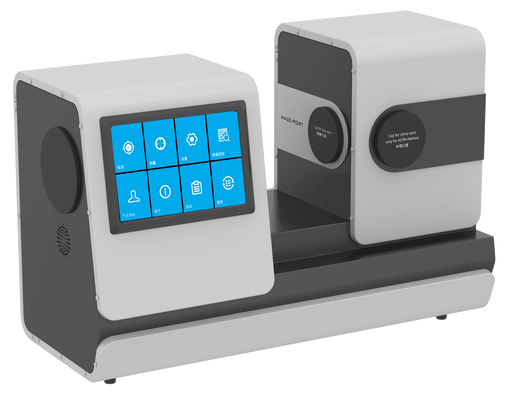

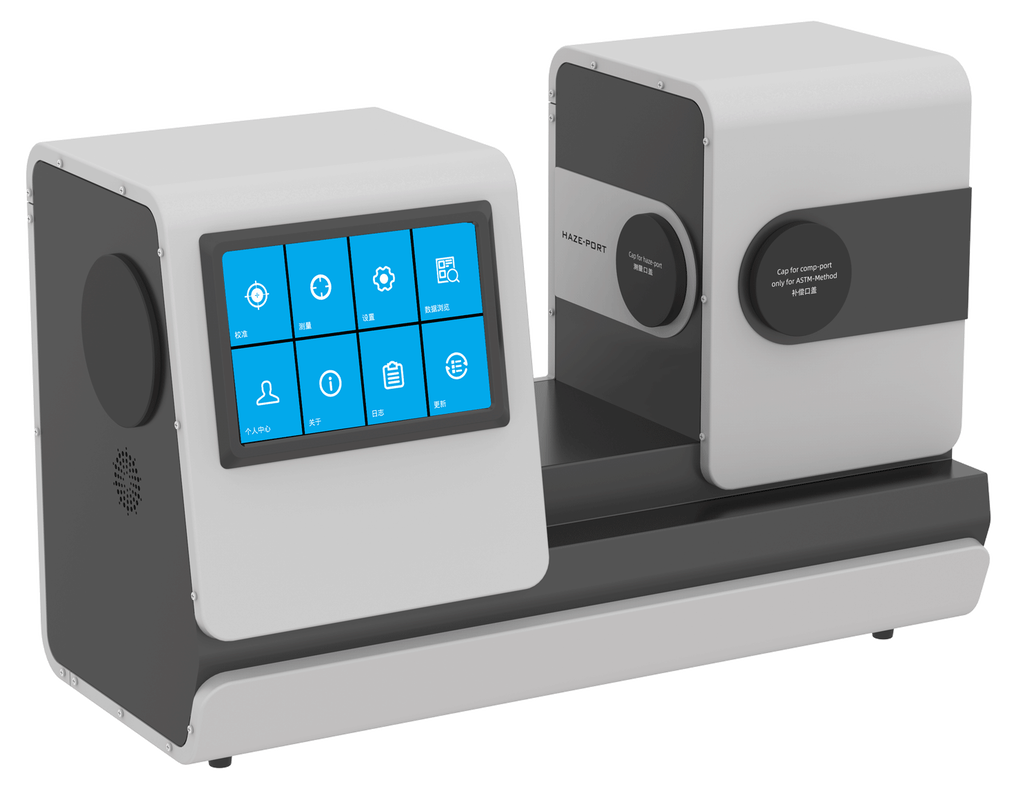

| Name: | Visible-Infrared Spectrophotometer 400-1100nm For Spectral Measurement | Measuring Range: | 0-100% |
|---|---|---|---|
| Spectral Response: | CIE Spectral Function Y | Interface: | RS-232,USB-A,USB-B |
| Power: | 220V(with Power Cord), 110V Available Upon Request | Standard Accessories: | PC Management Software, Resolution Standard Film |
Features
Technical Parameters
| Model | DH-CS-730 |
| Wavelength range | 400-1100nm |
| Wavelength resolution | 1nm |
| Optical path structure | 0/d |
| Measurement parameters | Haze, Transmittance (T), Clarity (C), CIE Lab, LCh, CIE Luv, XYZ, Yxy, Spectral Transmittance, Hunter Lab Munsell MI, CMYK, Whiteness WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (Milm), APHA, Pt-Co (Platinum-Cobalt Index), Gardner Index, Color Difference (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00) |
| Light source |
Haze/Transmittance: CIE-A, CIE-C, CIE-D65 Colorimetric Indices: A,C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10,F11,F12, CMF, U30, DLF, NBF, TL83, TL84 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard |
| Measuring range | 0-100% |
| Spectral response | CIE Spectral Function Y |
| Illumination and sample aperture size | 18mm/25.4mm |
| Haze resolution | 0.01 |
| Haze repeatability | ≤0.05 |
| Transmission repeatability | ≤0.05 |
| Interface | RS-232,USB-A,USB-B |
| Power | 220V(with power cord), 110V available upon request |
| Standard accessories | PC management software, resolution standard film |
