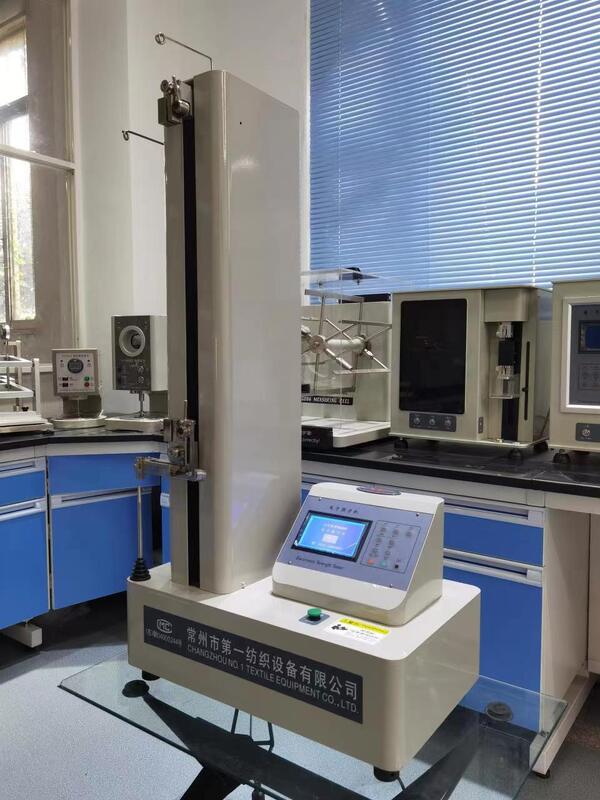

Electronic Single Yarn Strength Tester for Yarn Tensile Strength Testing

Product Details:

Place of Origin:	China
Brand Name:	Dahometer
Certification:	GB/T14344、 GB/T3916、ISO2062、ASTM D2256 GB/T4181、GB7690
Model Number:	YG020A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD1,338.00-USD1,399.00
Packaging Details:	Standard export wooden case
Delivery Time:	about 3 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Name:	Electronic Single Yarn Strength Tester For Yarn Tensile Strength Testing	Measuring Range:	2-110%
Division Value:	0.1CN (500CN), 1CN	Accuracy:	1%, 0.1%F
Load Resolution:	1/50000	Power Supply:	AC220V±10% 50Hz 0.25Kw

Electronic Single Yarn Strength Tester for Yarn Tensile Strength Testing

Specification

Item	YG020A Electronic Single Yarn Strength Tester
Application	Determination of breaking strength and breaking elongation of individual yarns. LCD display, with function of data storage, retrieval, statistics, printing. It can be connected to a PC with special software, and the data can be saved or printed out. It is used to test the breaking strength and elongation of single yarn and fiber pure or blended yarn of various cotton, wool, silk, chemical fiber and core-spun yarn.
Standards	GB/T14344, GB/T3916,ISO2062,ASTM D2256 GB/T4181,GB7690.
Main Technical Data	Constant velocity elongation (CRE) principle, microcomputer control, LCD Chinese (English) display, data report graphic printing. The maximum strength ranges are: 500CN, 5000CN, 100N, 200N, 300N, 500N. (please choose) Measuring range: 2-110%, division value: 0.1CN (500CN), 1CN, accuracy: 1%, 0.1%FS, load resolution: 1/50000 Clamping distance: 10-500MM stepless adjustable, digital setting, automatic positioning. Tensile speed: 10-800MM/MIN, division value: 1MM/MIN, accuracy: 1% Reply speed: 10-800MM/MIN, division value: 1MM/MIN, accuracy: 1% Effective stroke: 700MM (when the clip distance is 500MM, the stroke is 200MM), elongation resolution: 0.1MM Pre-tension: 0-150cN tension scale Power supply: AC220V±10% 50Hz 0.25Kw Dimensions: L600×W350×H1100mm Weight: 60Kg Test function: tensile fracture, elastic recovery (constant elongation strength, constant elongation elongation) can be selected, in line with various national standards GB, ISO, AATCC, BS.DIN, JIS, etc., strength unit N, CN, KG, LB Optional Yarn clamps can be manually clamped. Custom pneumatic grips are also available.
