Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | GB/T14337,GB/T9997,GB/T13835.5 ISO5079,ISO11566 ASTM D3822 BS4029 |
| Model Number: | YG001D |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1,503.00-USD1,699.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |
| Name: | Electronic Single Fiber Strength Machine Manual Clamping For Textile Fiber Tensile Testing | The Maximum Strength: | 100CN, 200CN, 300CN, 500CN, And 1000CN |
|---|---|---|---|
| Measuring Range: | 2-120% | Sensor Accuracy: | ≤±0.05%FS |
| Power Supply: | 220V, 50HZ, 200W | Weight: | 35KG |

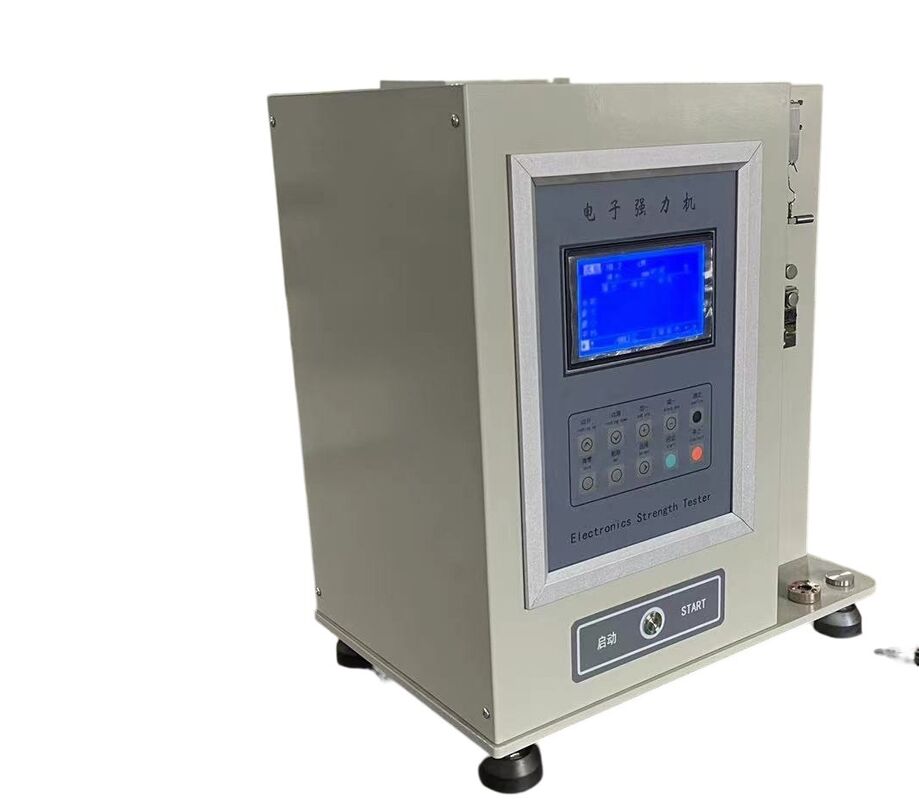

| Item | YG001D Electronic Single Fiber Strength Machine (Manual Clamping) |
| Application | It can be widely used in tensile testing of various chemical fibers, wool, cotton and other single fibers. Performance indicators such as breaking strength, breaking elongation, constant elongation load, constant elongation, and creep of various fibers. Under the condition that the powerful range of this instrument is not exceeded, it can also be used for testing some non-textile fibers. |
| Standards |
GB/T14337,GB/T9997,GB/T13835.5 ISO5079,ISO11566 ASTM D3822 BS4029 |
| Main Technical Data |
1. Test functions: Tensile fracture test (program and fixture), constant speed tensile, constant elongation load, constant load load, creep. The maximum strength ranges are: 100CN, 200CN, 300CN, 500CN, and 1000CN. Measuring range 2-120%, graduation value: 0.1cN (graduation value below 50cN is 0.01cN), accuracy: ≤±0.5%, load resolution: 1/50000, sensor accuracy: ≤±0.05%FS Minimum clamping distance: 10MM steplessly adjustable, digital setting, automatic positioning. Stretching speed: 2-200MM/MIN, graduation value: 1MM/MIN, accuracy: 1% Reply speed: 2-200MM/MIN, graduation value: 1MM/MIN, accuracy: 1% Effective stroke: 100MM/150MM, elongation resolution: 0.1MM 2. To switch between multiple national standards and units, please choose: GB, ISO, AATCC, BS, DIN, JIS, etc., N, CN, KG, LB, IN, etc. 3. The above test function is manual clamping 4. Power supply: 220V, 50HZ, 200W 5. Weight: 35KG 6. Overall dimensions: 370×300×550mm |
Configuration options:
1. Ordinary type: desktop host, large-screen Chinese and English LCD display, with data storage, retrieval, statistics, and printing functions. It can be independently configured with an EPSON300K printer to print out test data reports.
Data statistics include: strength, elongation, elongation, breaking time, breaking work, maximum value, minimum value, average value, CV value of breaking strength, etc.
2. Computer type: Provide computer operating software, equipped with computers, color monitors and inkjet printers to display and print out graphics and data reports.
It realizes two-way interactive control of host panel key operation (single chip microcomputer) and computer keyboard operation, which can be selected as needed.
The computer uses WINDOWS operating system.
The operation interface text can be selected in Chinese and English.
Data statistics include: strength, elongation, elongation, breaking time, breaking work, maximum value, minimum value, average value, CV value of breaking strength, etc.
