Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Hontotest |
| Certification: | ISO5084, ISO 9073-2, JIS L1096 |
| Model Number: | YG141G |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1,208.00-USD1,299.00 |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 3 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |

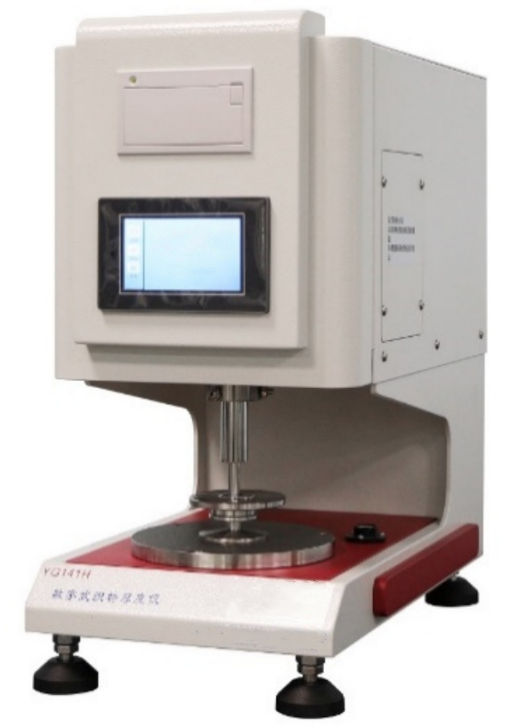

| Name: | Touch Screen Fabric Thickness Gauge For Textile Thickness Measurement |
|---|
USAGE
To determine the material thickness of all non-woven fabrics, textiles, felt, geomaterials, paper, floor coverings, leather, foils, etc.
TESTING STANDARDS
ISO5084, ISO 9073-2, JIS L1096
TECHNICAL DETAILS
1. Indication: Digital
2. Measuring range: 0.01~20.00mm
3. Resolution: 0.01mm
4. Accuracy: ±0.02 mm
5. Lowering speed of pressing-foot: 1.72 mm/s
6. Presser-feet: 1cm², 20cm², 25cm², 100cm²
7. Pressure: 20cN, 100cN, 200cN, 500cN, 2000cN
8. Time: 10s, 30s
9. Dimensions: 410 x 160 x 300 mm
10. Power supply: 220V, 50Hz
11. Weight: 35 kg
