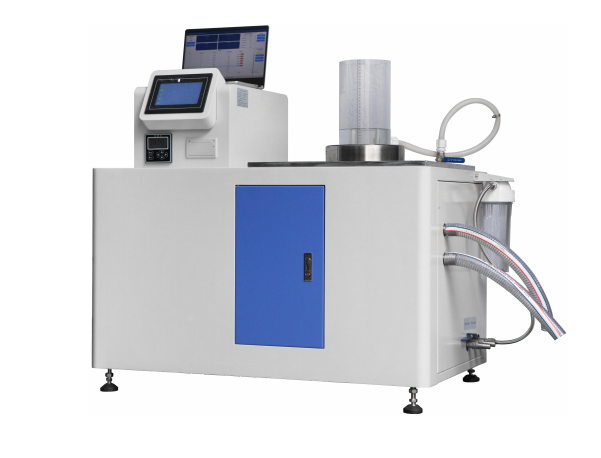

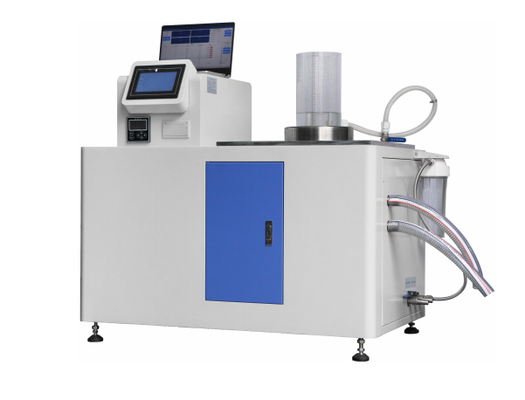

Geotextile Permeability Tester for Water Permeability Testing

Application:

The geotextile vertical permeability tester is a constant head tester designed and manufactured according to the requirements of the latest national standard GB/T15789-2016. It is suitable for testing the vertical permeability of various permeable geotextiles and composite geotextiles under a constant head. The machine adopts microcomputer program control, and the sensor collects and measures the water volume, and the permeability coefficient is automatically calculated.

Features:

1. Human-Machine Interface: Touchscreen operation, menu-driven, simple and clear operation.

2. Cooling Method: Imported compressor.

3. Protection Function: Built-in water level device with anti-dry-burning function.

4. Control Method: Microcontroller-based automatic temperature control.

5. Clamping Method: Vertical.

6. Built-in dissolved oxygen sensor for direct display of liquid oxygen concentration.

7. Built-in vacuum pump effectively reduces liquid oxygen concentration.

8. Water collection method: Flow meter or manual collection.

Technical Parameter:

1. Temperature Range: 15-30℃

2. Temperature Accuracy: 0.1℃

3. Water Collection Time: 30.0-999.9s (arbitrarily settable)

4. Oscillation Frequency: 20-70 times/min, stepless speed regulation

5. Head Difference: 0-250mm

6. Dissolved Oxygen Sensor Accuracy: 0.01mg/kg

7. Inner Diameter of the Aerator: 50mm±0.2mm

8. Overall Dimensions: 1270×750×1065mm

9. Power Supply: AC220V 50HZ 4000W
