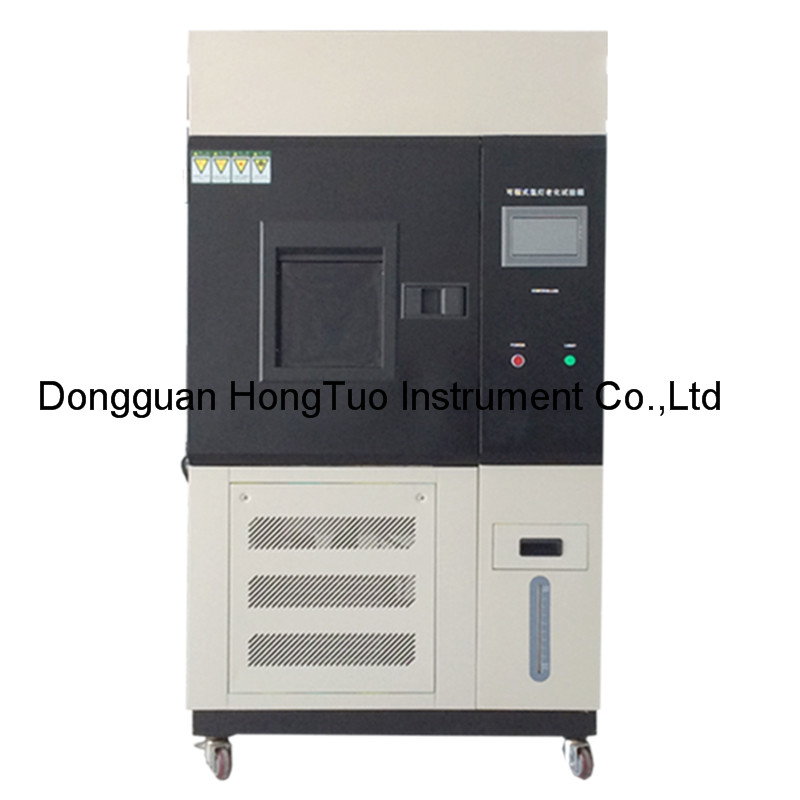

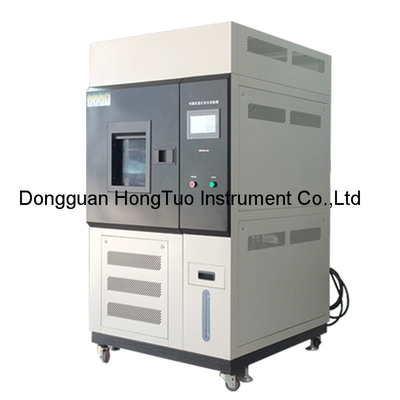

DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber

DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber

  • DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber
  • DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber
DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber
Product Details:
Place of Origin: China
Brand Name: Dahometer
Certification: ISO,SGS
Model Number: DH-XD-408
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: about 7 days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per months
Contact Now
Detailed Product Description
Name: DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber VOLUME(L): 408
Inner Size: WHD(cm): 60*85*80 External Size: WHD(cm): 135*210*120
Humidity Range: 30%~98%R.H Temperature Range: 0℃~80℃, Adjustable
High Light:

Xenon Lamp Aging Test Chamber

,

multilayer hollow Aging Test Chamber

,

Xenon Arc Aging Test Chamber

DH-XD-408 Xenon Arc Test Chamber Accelerated Xenon Lamp Aging Test Chamber





1.Application:



Xenon Aging Test Chamber,is designed to simulate full sunlight spectrum to produce destructive effect on material.The chamber can simulates the light, temperature, rainfall (spray) and condensing (humidity), is mainly used to test aging resistance of products or spare parts affected by natural environment, it tests the material aging-resistant performance in sunlight, rain, temperature and humidity, you can know the products quality at a very short time, such as the depigmentation, transmissivity, gloss, peeling, hard, softening.





2.Features:



1.Adopt the long axis fan motor,anti high and low temperature stainless steel multi-blades wheel,have good convection.and vertical diffusion cycle.



2.Double-layer anti-high temperature sealing strip has been used between the door and the box.to make sure the leakproofness for the testing area.



3.Adopt non-counteractive door knob,more easy operation.



4. Adopt high quality fixable PU running wheel of the bottom of machine.



5.Adopt multi-layer hollow tempered glass inspection window.(can observe the testing procedure clearly)



6.Irregular shape sample holder,make the installation of testing specimen more easier.and convenient to be used.



7. The working life of xenon lamp is determined by the radiation level.normal service life of lamp is 1600 hours.Lamp is easy to be changed.The effective filter can make sure spectrum demanded can be offered.





3.Specification:

Model DH-XD
-80 -150 -225 -408 -800 -1000
Inner size: WHD(cm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size: WHD(cm) 105*185*115 105*185*115 115*195*115 135*210*120 155*230*145 155*230*165
Temperature and humidity uniformity ± 2°C; ± 3%RH
Temperature range 0℃~80℃, adjustable
Humidity range 30%~98%R.H
Type of light source imported air-cooled full solar spectrum long arc xenon lamp (average service life is around 1600 hours)
Rainfall time 1~9999min, adjustable
Rainfall cycle 1~240min,interval is adjustable
Wavelength 290nm~800nm
Source irradiance 290~800nm: 100~600w/m2
300~890nm: 200~1200w/m2
340nm: 0.3~1.2w/m2
420nm: 20~120w/m2
Distance from the center of the arc to the sample holder 350~380mm
Sample rotating basket speed ≥1r/min
Water spray cycle Water spray time: 0 ~ 99h59min, continuously adjustable; Stopping time: 0~99h59min, continuously adjustable
Light time Continuous programming
Blackboard temperature 85±3℃
Cooling method Mechanical refrigeration air cooling
Xenon lamp light Xenon long-arc lamp, 1.8KW±10%, 290-800nm, 1200W/m2
Xenon lamp light quantity 1PCS 2pcs 3 PCS
Box material Stainless Steel SUS304#
Control and cooling system Korea TEMI programmable controller
Power (w) 4500 5500 6000 11800 13500 14000
weight (kg) 230 230 300 450 550 680
