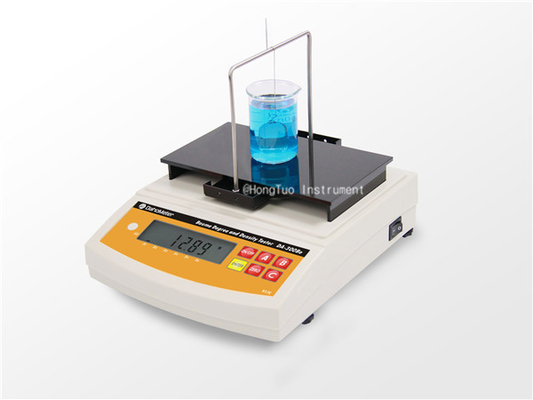

Alcohol Liquid Density Meter Concentration Measuring Instrument 0.001g/Cm3

Alcohol Liquid Density Meter Concentration Measuring Instrument 0.001g/Cm3

Alcohol Liquid Density Meter Concentration Measuring Instrument 0.001g/Cm3

Product Details:

Place of Origin: dongguan
Brand Name: DahoMeter
Certification: CE, FCC
Model Number: DA - 300W ; DE-120W

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD399-USD1299
Packaging Details: 42 X 16 X 32cm
Delivery Time: 2 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
Supply Ability: 300 Set/Sets per Month
Contact Now
Detailed Product Description
Customized: Yes Power Supply: Defaulted As Europe Standard AC 100V - 240V;per Customers' Requirement
Maximum Weight: 300g;120g Density Resolution: 0.001g/cm3;0.0001g/cm3
Interface: RS - 232 Warranty: Two Years ;life-long Maintenance
Customer Service Provided: Yes After-sale Service Provided: Yes
Testing Before Delivery: Yes Minimum Weight: 0.001g;0.001g
Original Products: Yes



DahoMeter Digital Electronic Concentration Meter , Concentration Measuring Instrument , Densimeter for Alcohol



------High-precision,Multi-function,Digital disply,Accurate testing



Standards:



In accordance with Archimedes principle, GB/T 611,GB/T1154,GB/T12206,GB/T5518 standards etc.



Adopt the dynamic measurement without memory;No need to press the button; Memory quickly;Automatically judge whether density is qualified or not and prompt alarm through the setting of top and bottom limitation; Function of measuring density with three mode; Get out of the cumbersome operation of re-calibrate when change weight; It is more high-precision, convenient, rapid,hommization; Function of displaying concentration ,density and baume.



Specification:



Model:DA-300W

Density resolution: 0.001 g/cm3

Maximum weight:300g

Minimum weight:0.005g

Measuring range: 0.001-99.999g/cm3



Model:DE-120W

Density resolution: 0.0001 g/cm3

Maximum weight:120g

Minimum weight:0.001g

Measuring range: 0.0001-99.9999g/cm3



Features :



(1) Density value can be showed by one procedure;repeated continuous rapid measurement can be worked.



(2) Digital display; High accuracy of measurement;Simple operation; Stable and durable.



(3) Density value of samples with temperature from normal to 100 centigrade can be measured.



(4) Take samples conveniently;50CC or less would be okay.



(5) It is very easy to clean measurement cup;can’t got the limitation of the size of pycnometer caliber.



(6) Adopt completed windproof and dustproof cover,which makes structure convenient and durable.



(7) Adopt completed stainless steel measuring hook.



(8) Coordinate with operation of thermostatic tank to measure the proportion with required

temperature.



(9) Function of displaying concentration of density and baume.Volatile liquid,corrosivity liquid,vicidity liquid,strong acid and strong lye liquid can be measured quickly.



(10) Interface of RS-232C is included.the printer of DE-40 is available to connect PC with the instrument.



Measurement Procedure:

  1. Place beaker with samples on testing board.and take off weight of pothook.
  2. Hang standard weight on pothook and submerged into liquid to be tested totally.press ENTER key to memory.Density value will be displayed



Standard Accessories:



Host,measurement frame,DE-20A standard liquid measurement assembly,tweezers,thermometer,100G weight,wind and dust cover,measurement support,power transformer



DE-20A standard liquid measurement assembly:

Two stainless steel pothooks,one normal glass weight,one normal stainless steel

weigh,two beakers.



Optional Accessories:



DE-40 printer,DE-20B anti corrosive liquid measurement assembly.



Specification Table:



Name/model DA-300W DE-120W
Brand DAHOMETER DAHOMETER
Density resolution 0.001 g/cm3 0.0001 g/cm3
Density range 0.001—99.999g/cm3 0.0001—99.9999g/cm3

Measurement

type

a:mobility liquid,vicious liquid,volatile liquid,corrosivity liquid,high temperature liquid,suspension liquid,emulsion and so on



b:alcohol,scaling powder,essence,blood,sodium chloride,glycerol,electrolyte, diesel,refrigerating,

hydrofluoric acid,dichloromethane,vitriol

Measurement

Principle

A.Archimedes principle displacement method;B.Constant volume method(pycnometer method)

Measurement

mode

3 group

Measurement

time

immediately
Memory mode dynamic memory
Result disply Density value and Baume

Specific

Gravity

Measurement

frame

stainless steel specific gravity measurement frame

Function of

setting

Temperature setting,solution density setting,measurement weights setting of weigh in the Normal Liquid and water

Function of

prompting alarm

alarm rings when judge density unqualified.
Standard weight setting set three different group of the weight of weight in air and in water

Calibration

mode

auto correction with one button,auto detection.

Measurement

testing

distilled testing
Output mode

standard interface of RS-232,output and

Print testing data conveniently

Standard accessories

Host,measurement frame,DE-20A standard liquid measurement

assembly,tweezers,thermometer,100G weight,wind and dust cover,measurement

support,power transformer



DE-20A standard liquid measurement assembly:

Two stainless steel pothooks,one normal glass weight,one normal stainless steel

weigh,two beakers.

Optional accessories DE-40 printer,DE-20B anti corrosive liquid measurement assembly
power supply Defaulted as Europe type;other type can be optional
Main feature

data display,accuracy,speediness,convenience

Durable,economy


Our Advantages:


DH-300L details NEW

Tips-Troubleshooting method



When the weights is not stable

Please check out:whether the windproof and dustproof cover is closed well;whether the measuring shelf is touched with container plate;whether there is dirty or water drop is underneath of plate..if it is,please clean up the dirty or water drop,re-install container plate and measuring shelf.



When the measuring is not correct

Please do calibration again.and put the weight on the centre of measuring bridge.for 300 model,the error should be within 100g±0.005g;for 120g model,the error should be within 100g±0.01g.

Please check if it is surroundings take effect on measuring.

Please check if there is bubble on specimen when it is put into water.



Packing list



No Name Unit qty Remark
01 DA-300W main body set 1
02 Measuring frame pcs 1
03 Container plate pcs 1
04 220V power transformer pcs 1
05 100g weights pcs 1
06 Standard glass weights pcs 1
07 Standard steel weights pcs 1
08 50ml flask pcs 2
09 Hanger pcs 2
10 Wind-proof shield pcs 1
11 Thermometer pcs 1
12 Tweezer pcs 1
13 Screw box 1
14 Instructions copy 1
