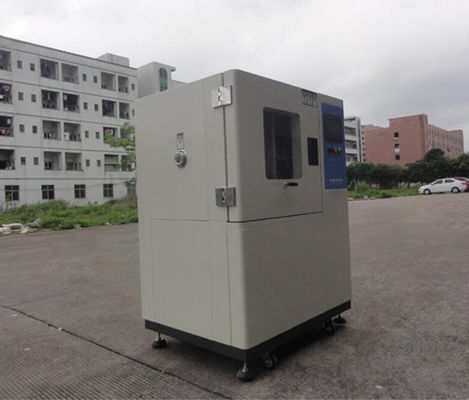

Sand And Dust Environmental Testing Chamber / Cabinet / Equipment 150um~850μm

Sand And Dust Environmental Testing Chamber / Cabinet / Equipment 150um~850μm

    • Sand And Dust Environmental Testing Chamber / Cabinet / Equipment 150um~850μm
    • Sand And Dust Environmental Testing Chamber / Cabinet / Equipment 150um~850μm
    • Sand And Dust Environmental Testing Chamber / Cabinet / Equipment 150um~850μm
  • Sand And Dust Environmental Testing Chamber / Cabinet / Equipment 150um~850μm

    Product Details:

    Place of Origin: dongguan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: DDH-80

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD499-USD9999
    Packaging Details: wood standard exported package for Sand and Dust Testing Oven / Chamber / Cabinet / Equipment
    Delivery Time: 25 to 30 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
    Supply Ability: 300 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Customized: Yes OEM Service: Yes
    Stock: Yes After-sale Service Provided: Yes
    Usage: Sand And Dust Test Chamber Temperature Range: 20 To 80℃



    Sand and Dust Testing Oven / Chamber / Cabinet / Equipment





    Application:



    To simulate the destructive effection from sand and dust on the products. It is suitable for testing the sealing performance of testing objects.Mainly for the IP5X and IP6X two classes of external box protection level standards.





    Standards:



    IEC 60529, IPX5/6, GB2423.37, GB4706, GB 4208, GB 10485, GB 7000.1,GJB 150.12, DIN...





    Specification:



    Model DDH-80 DDH-150 DDH-225 DDH-408 DDH-800
    Temp.Range 20 ~ 80 ℃
    Air Duct System Special Airduct Design. Non-layered Vertical Cyclical Airlow
    Sand Plate Size 150um~850μm
    Dust Size <149μm
    Sand Dust Composition Dry Talcum Powder,Silicate Cement
    Nom.Line 50μm
    Nom.Space 75μm
    Blowing Sand Capacity Blowing Sand Speed:18~29m/s
    Blowing Dust Capacity Blow Dust Speed:0.5~8.9m/s
    Controller Small Programmable Time Controller
    Internal Dimension ( W X H X Dcm) 40*50*40 50*60*50 50*60*75 60*75*60 80*100*100
    External Dimension ( W X H X Dcm) 100*143*85 105*150*110 115*97*80 115*175*140 160*190*140
