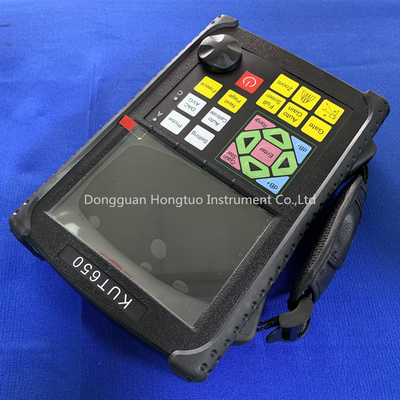

Portable Non Destructive Testing Machine UT Flaw Detector / Rail Ultrasonic Flaw Detector Machine

Portable Non Destructive Testing Machine UT Flaw Detector / Rail Ultrasonic Flaw Detector Machine

    • Portable Non Destructive Testing Machine UT Flaw Detector / Rail Ultrasonic Flaw Detector Machine
    • Portable Non Destructive Testing Machine UT Flaw Detector / Rail Ultrasonic Flaw Detector Machine
  • Portable Non Destructive Testing Machine UT Flaw Detector / Rail Ultrasonic Flaw Detector Machine

    Product Details:

    Place of Origin: DongGuan,China
    Brand Name: DahoMeter
    Model Number: KUT-650

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to USD1999
    Packaging Details: standard exporting package
    Delivery Time: 3 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    Vertical Linearity Error: ≤3% Horizontal Linearity Error: ≤0.1%
    Measurement Mode: Single、Dual、Thru Reject: 0~80%
    Pulse Displacement(μs): -20 ~ +3400 Production Name: Portable Ultrasonic Flaw Detector



    Non Destructive Testing Machine UT Flaw Detector , Portable Rail Ultrasonic Flaw Detector Machine





    Main Feature:



    * Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф);

    * Unlimited of video time

    * Automated to switch three staff gauge ((Depth d,level p,distance s);

    * Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;

    * Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated;

    * 6dB DAC functions;

    * Standards of test for DAC is saved.

    * 500 independence setup, any criterion can be input freely, we can work in the scene without test block;

    * Big memory of 1000 A graph

    * Automated gain and gain scan;

    * Peak Hold and Peak Memory;

    * B scan;

    * AWS D1.1

    * Automated make video of test process and play; use USB flash disk,the length of video is unlimited.

    * Powerful pc software and reports can be export to excel;

    * Li battery, continue working time up to 10 hours;

    * The embeded software can be online updated;

    * Display freeze;

    * Automated echo degree;

    * Angles and K-value;

    * Lock and unlock function of system parameters;

    * Electronic clock calendar ;

    * Two gates setting and alarm indication;

    * Gate and DAC alarm;



    Application:



    KUT-650 is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field.



    Portable Non Destructive Testing Machine UT Flaw Detector / Rail Ultrasonic Flaw Detector Machine





    Technical Parameter:



    Title Parameter Title Parameter
    Measuring Range(mm) 0 ~ 10000 Measurement Mode Single,Dual,Thru
    Vertical Linearity Error ≤3% Reject 0~80%
    Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ~ +3400
    Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~ 99.99
    Dynamic range ≥34dB Port Type BNC(Q9)
    Resolving Power ≥36dB Operating Temperature (℃) -20~50
    Frequency Range(MHz) 0.5 ~ 20 H×W×D(mm) 240×156×50
    Gain(dB) 0 ~ 120 Weight(kg) 1.0(with battery)
    Material Velocity(m/s) 1000 ~ 15000

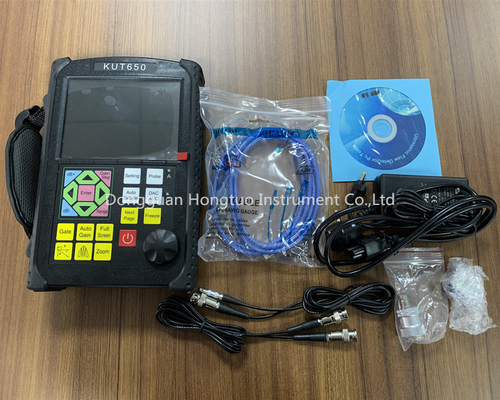

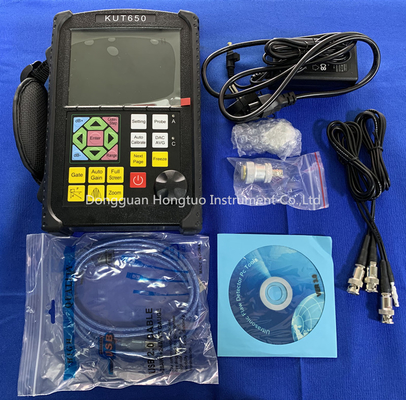

    Standard configuration:







    Name QTY
    1 Main unit 1
    2 1.5A/9V power adaptor 1
    3 probe connecting cable 2
    4 Instrument case 1
    5 Instruction manual 1
    6 Straight probe 10mm 4MHz 1
    7 Angle probe 8x9 60°4MHz 1
    8 PC connecting cable 1
    9 Warranty card 1
