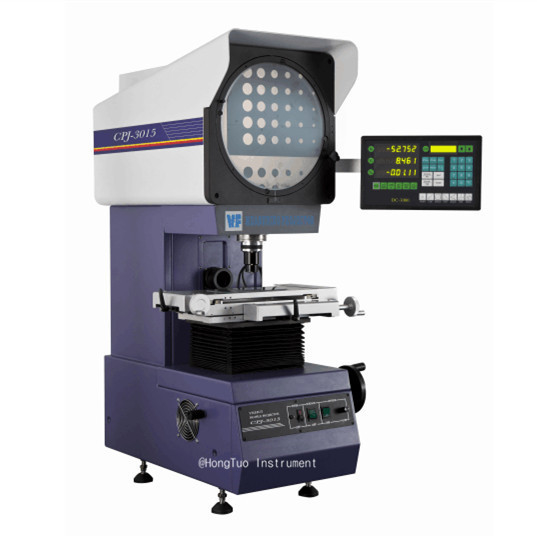

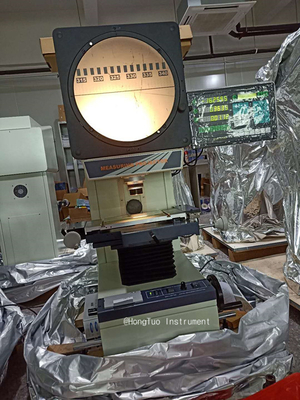

Comparator Multi Function Optical Profile Projector With 3D Manual Vision Measuring

Comparator Multi Function Optical Profile Projector With 3D Manual Vision Measuring

    • Comparator Multi Function Optical Profile Projector With 3D Manual Vision Measuring
    • Comparator Multi Function Optical Profile Projector With 3D Manual Vision Measuring
  • Comparator Multi Function Optical Profile Projector With 3D Manual Vision Measuring

    Product Details:

    Place of Origin: Dongguan,China
    Brand Name: DahoMeter
    Model Number: CPJ-3015

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: USD999 to USD3999
    Packaging Details: standard exporting wooden package
    Delivery Time: 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 300 sets per month
    Contact Now
    Detailed Product Description
    The Metal Table’s Size(mm): 340X152 The Glass Table’s Size(mm): 196X96
    Measuring Accuracy: (3+L/50)µm Testing Before Delivery: Yes
    After-sale Customer Service: Yes Product Name: Profile Projector Machine



    How To Use Profile Projector Optical Comparator Machine , Profile Projector Procedure





    Usages:



    1. Profile projector is mainly used for the measurement of the mechanical parts of the length,

    angle, contour and surface shape.

    2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.

    3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.





    Specification:



    Model CPJ-3015
    Table The metal table’s size(mm) 340X152
    The glass table’s size(mm) 196X96
    X-axis travel(mm) 150
    Y-axis travel(mm) 50
    Z-axis travel(mm) 90 for focus
    Measuring accuracy (3+L/50)µm
    Resolution(X-axis, Y-axis) 0.0005 mm
    Screen size (mm): Ø 312 Used range>Ø 300(with the meter line)
    Screen rotary range: 0°~360°
    Rotary angle Resolution 1´ or 0.01°
    Lens Magnification 10X option 20X option 50X option 100X option
    Object view Ø30 Ø15 Ø6 Ø3
    Working distance 77.7mm 44.3mm 38.4 25.3
    Max. work-piece height 80mm 80mm 80mm 80mm
    Data processing system DC-3000 multi-function data processing system ,appearing in English, can be used to gather the data and measure the point ,line, circle, angle and distance
    Cold By three fans
    Illumination The illumination of transmission and reflection: 24V/150W-halogen lamp.
    Power 110V/220V(AC), 50/60HZ, Total power=400W
    Dimensions 780*780*1100mm
    Weight 180kg
