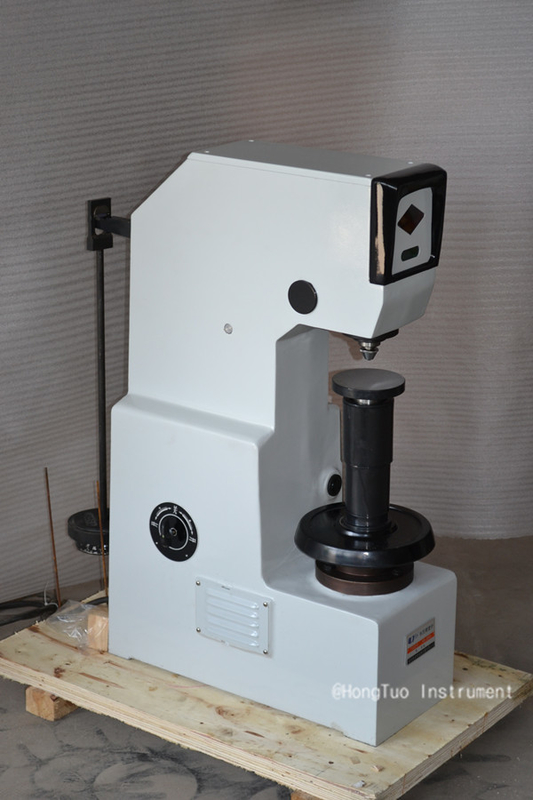

ASTM Standard Brinell Digital Hardness Tester With Color Touch Screen

    • ASTM Standard Brinell Digital Hardness Tester With Color Touch Screen
    • ASTM Standard Brinell Digital Hardness Tester With Color Touch Screen
    • ASTM Standard Brinell Digital Hardness Tester With Color Touch Screen
  • ASTM Standard Brinell Digital Hardness Tester With Color Touch Screen

    Product Details:

    Place of Origin: dongguan
    Brand Name: DahoMeter
    Certification: CE, FCC
    Model Number: HB-3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: standard exporting wooden package
    Delivery Time: 3 to 5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,other
    Supply Ability: 300 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Usage: Brinell Hardness Tester Testing Before Delivery: Yes
    After-sale Customer Service: Yes Techinical Support: Yes
    Measuring Range: 8-650HBW Max. Height Of Test Piece: 230mm



    ASTM Standard Portable Brinell Hardness Tester / Testing Machine / Equipment / Instrument / Device / Apparatus / Method





    Main features :

    • Solid structure, good rigidity, accurate, reliable, durable, high test efficiency;
    • Mechanical reversing switch, high power solid state relay;
    • High precision measuring system;
    • Widely applicable to quality control in the production field, strong adaptability to working environment;
    • Patent design of mechanical structure, low noise, very low failure rate;
    • Accuracy is in line with GB/T231.2, ISO6506-2 and E10 ASTM standards in the United States;
    • Wide range of applications, suitable for the precision measurement of parallel planes, and stable and reliable surface measurement.

    Application:



    It's suitable to determine Brinell hardness of black metal, non-ferrous metals and bearing alloy material;

    Wide range of applications, suitable for precision measurement of parallel planes, and the surface measurement is stable and reliable.



    Specifications:



    Measuring range 8-650HBW
    Test force

    1838.8,2415.8,7355.3,9807,29421N

    (187.5, 250, 750,1000,3000kgf)

    Max. height of test piece 230mm
    Depth of throat 120mm
    Power AC380V /50HZ
    Dimension 700 x 268 x 842mm
    Weight approx. 210kg



    Standard configuration :



    Large flat anvil: 1 pc.

    Small flat anvil: 1 pc.

    V-notch anvil: 1 pc.

    Tungsten tarbide ball indentor: Φ2.5mm

    Φ5mm

    Φ10mm

    Standard Brinell hardness block : 2pcs

    20X reading microscope: 1pc
