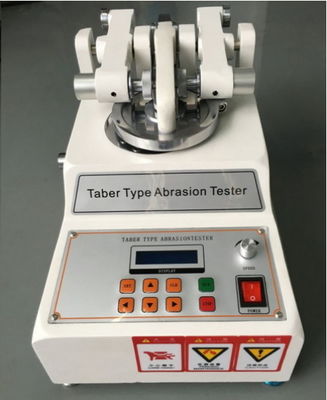

Taber Abrasion Tester ASTM D7255 Leather Rotary Abraser For Wear Test

Taber Abrasion Tester ASTM D7255 Leather Rotary Abraser For Wear Test

Product Details:

Place of Origin: Dongguan,China
Brand Name: DahoMeter
Certification: CE Certification
Model Number: DH-TA-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD999 to USD1999
Packaging Details: standard exporting wooden package
Delivery Time: 3 to 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Counter: LED 0~999,9999 Distance From Testing Sheet To Suction Inlet: 3mm
Weight: 30kg Testing Before Delivery: Yes
After-sale Customer Service: Yes Product Name: Taber Abrasion Tester



Taber Abrasion Tester ASTM D7255 Leather Rotary Abraser for Wear Test





Application:



Taber Rotary Abraser. To determine the wear resistance of all kinds of structures including fabrics, leather and rubber, paper, metals, paints, plated surfaces, coated materials, glass etc.

Taber Abrasion Tester (Taber Abraser) uses the X pattern of abrasion produced by a rotary action of a pair of abrasive wheels. Taber abraser supplies with a full range of auxiliary Weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit.



Standard: DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM D3884, ISO 5470, ASTM D 1175, ASTM D1044.



Specification:



1.Testing sheet:inner diameter(D)3mm

2. Abrasion wheel:?2"(Max.45mm)(W)1/2"

3. Centre interval for abrasion wheel :63.5mm

4. Interval for abrasion wheel and testing sheet:37~38mm

5. Rotating speed:60-72r/min(can be adjustable)

6. Load:250,500,1000g

7. Counter:LED 0~999,9999

8. Distance from testing sheet to suction inlet:3mm

9. Dimension:45 x 35 x 42cm

10. Weight:30kg

11. Power supply:AC 220V,10A

12. One pair of imported grinding wheel H-18;One set of cleaner
