| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-CC-01 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | LCD Display Package Testing Equipment Electronic Carton Compression Tester | Features:: | Can Display Test Value And Maximum Value, With Printing Function |
|---|---|---|---|
| Capacity: | 500kg | Accuracy Level: | 1 Class |
| Control Method: | Microcomputer Control (computer Operating System Is Optional) | Stress Unit Conversion: | MPa，kPa，kgf/cm2，lbf/in2 |

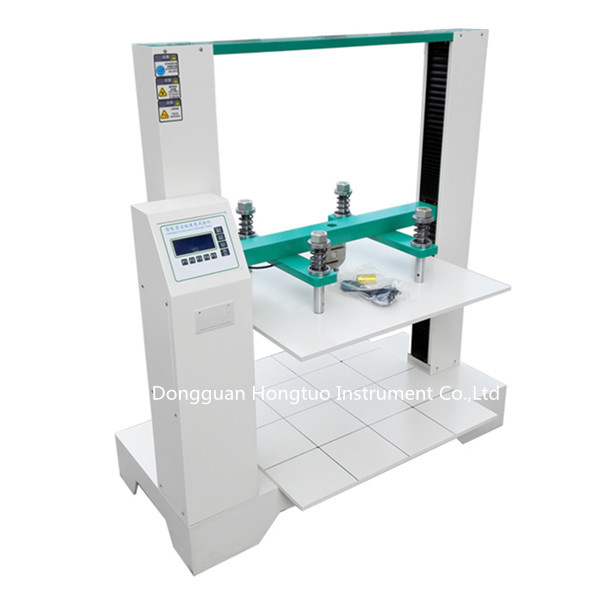

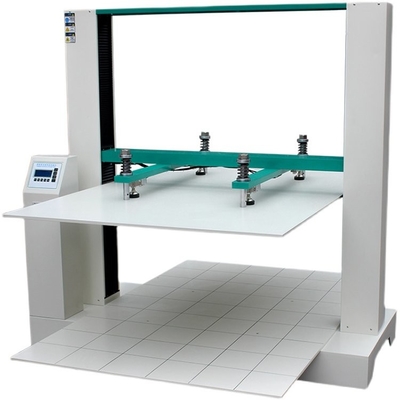

LCD Display Package Testing Equipment Electronic Carton Compression Tester
Product introduction: It is the basic instrument for testing the compressive strength of corrugated boxes (ie packaging testing equipment), and is suitable for compressive strength test, compliance test and stacking strength test of various corrugated boxes.
Detailed equipment parameters:
| Capacity | 500kg |
| Accuracy level | 1 class |
| Control method | Microcomputer control (computer operating system is optional) |
| Display method | Electronic LCD display (or computer display) |
| Unit conversion | kgf,gf ,N,kN,lbf |
| Stress unit conversion | MPa,kPa,kgf/cm2,lbf/in2 |
| Displacement unit | mm, cm, in |
| Force resolution | 1/100000 |
| Display resolution | 0.001N |
| Machine stroke | 600 mm |
| Platen size | 600*600 mm |
| Test speed |
5mm～100mm/min can input speed arbitrarily |
| Software function | English language |
| Stop mode | Overload shutdown, emergency stop button,specimen damage automatic shutdown, upper and lower limits automatic shutdown |
| safety devices | Overload protection, limit element protection device |
| Machine power | AC inverter motor drive controller |
| Mechanical system | High precision ball screw |
| Power supply | AC220V/50HZ~60HZ 4A |
| Machine weight | Around 350KG |
| features | Percent break value can be set, automatic stop, can enter the menu to choose 4 different speeds, 20 results, you can view the average value of all test results and single results |
Meet the following criteria:
GB/T 4857.4 "Pressure test method for packaging and transportation package"
GB/T 4857.3 "Static load stacking test method for packaging and transport packages"
ISO2872 "Packaging - Complete, Fully Loaded Transport Packages - Stress Test"
ISO2874 "Packaging - Complete, Fully Loaded Transport Packages - Stacking Tests with Pressure Testers"
QB/T 1048 "Cardboard and Carton Compression Tester"
