Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO,SGS |
| Model Number: | DH-5040F |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | about 7 days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per months |
| Name: | Industrial Imaging Optical Coordinate Measuring Machine 3D CNC Image Instrument | Product Features:: | Can Match Foot Switch,easy To Operate At Any Place. |
|---|---|---|---|
| Weight(kg): | 500 | Dimension(L)*(W)*(H): | 850*1050*1200 |
| Software System: | Measuring Software | After-sales Service: | Yes |

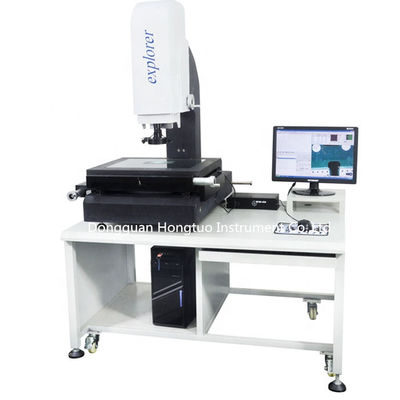

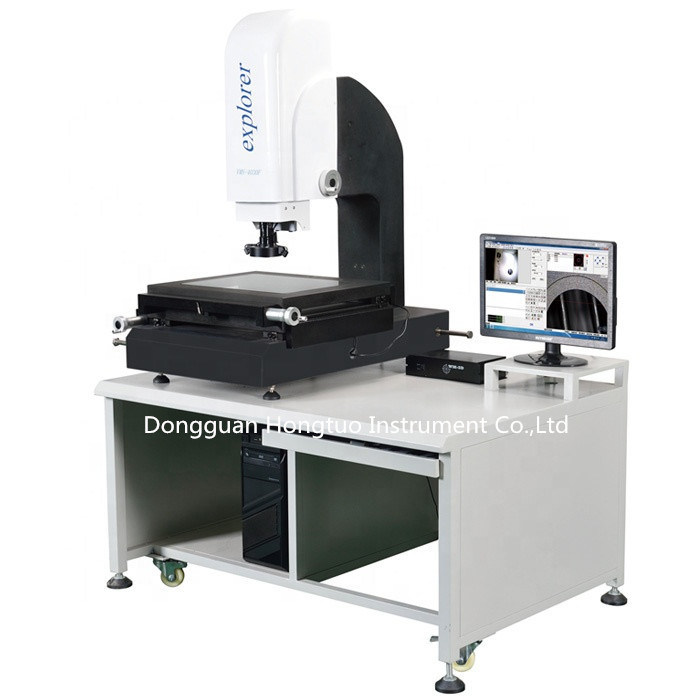

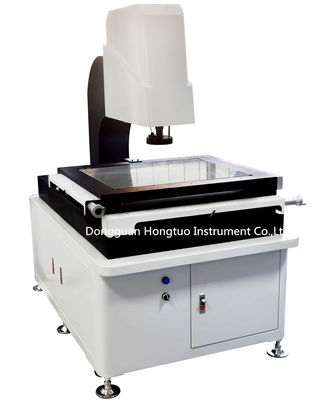

Industrial Imaging Optical Coordinate Measuring Machine 3D CNC Image Instrument
Application:
Image measuring instrument is a qualitative leap on the basis of measuring projector, it has promoted the industrial measurement method from the traditional optical projection counterpoint to the computer screen measurement based on the digital image age.
Specification:
| Model | DH-2010F | DH-3020F | DH-4030F | DH-5040F | |
| Worktable | Metal table’s size(mm) | 350*220 | 450*350 | 550*450 | 700*600 |
| Glass table’s size(mm) | 230*130 | 330*230 | 430*330 | 530*430 | |
| X/Y axis travel(mm) | 200*100 | 300*200 | 400*300 | 500*400 | |
| Z axis travel | Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm | ||||
| Drive type | X/Y axis rod drive,Z axis optical axis drive | ||||
| Weight(kg) | 170 | 260 | 300 | 500 | |
| Dimension(L)*(W)*(H) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |
| Measuring servo drive system | Optical scale resolution:X/Y/Z axis 0.0005mm(0.5um) | ||||
| Measuring accuracy:≤3um + L/200 repeatability accuracy:≤3um+L/200(L be regarded as measured length, units: mm) | |||||
| Versatile data processor can measures points,lines,loops,circles,angles.etc. | |||||
| Image System (Standard Accessories) |
Camera :SONY1 / 3" Color CCD Camera | ||||
| Lens magnification :0.7~4.5X WD:95mm | |||||
| Can match 0.5x objective lens,total magnification:15-115x | |||||
| Can match 2x objective lens,total magnification:60-460x | |||||
| LIght system | Surface light and projection light,cold light,long life,brightness adjustable,Surface light and transmission light are used LED,Power:220/110V(AC),50HZ 30W | ||||
