|Place of Origin:||dongguan|
|Minimum Order Quantity:||1|
|Packaging Details:||wood standard exported package for Temperature Humidity Test Chamber|
|Delivery Time:||25 to 30 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,other|
|Supply Ability:||300 Set/Sets per Month|
|Stock:||Yes||Temperature Range:||-20℃ To 150℃|
|Usage:||Bench Top Environmental Testing Chamber||Volume:||150L|
environmental testing equipment,
environmental control chamber

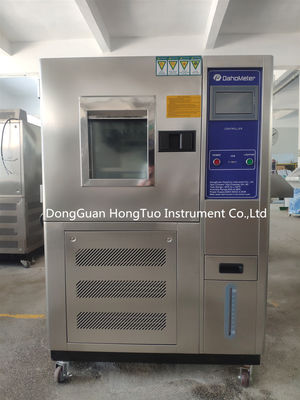

150L High Precision Small Bench Top Environmental Testing Chamber , Temperature Humidity Test Chamber
● Climatic chamber is designed to do high temperature & high humidity, high and low temperature, or temperature cycling test, Climatic chamber mainly used for quality checking and assessing their quality reliability and life test.
● The climatic chamber simulate a full range of temperature testing and humidity testing conditions.These chambers are designed for ease-of-use, reliability and performance and include many user-friendly features standard with your purchase for the best value in the industry.
● Climatic test chambers are able to provide rapid product temperature change rates and use varying levels of relative humidity to locate design problems prior to shipping your products, improving product quality and reliability.
For conditioning of samples prior to testing. Climatic chamber also can be used for a variety of materials of high – low temperature alternating test. The test temperature, humidity, time can be programmed. Provides conditions of temperature form -70 degree to +150 degree and of humidity from 20% to 98%.
● This type climatic chamber use 16bit Industry-grade PLC, programmable controller to control the test temperature test, and recycle time, more excellent anti jamming, high reliability of the data.
● TEMI880 large color LCD touched screen temperature & humidity controller. Real-time display program running time, the number of segment, the remaining time, repeat frequency,can display experimental data, including the pre-set segment time, heating status, calendar time, etc; climatic chamber directly digital display.
● Climatic chambers apply controllable silicon step-less adjusting technology to adjust temperature and humidity test continuously and precisely, and without over heated as the PID adjusting function.
● The thermal insulation material between outside and inside for climatic chamber is high-quality ultra-fine glass fiber insulation cotton, good thermal insulation effectivity. Thermal insulation layer composed of flame fire PU + glass wool insulation (insulation thickness 10.0 cm)
This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.
(1) The outer case is made up of SECC steel plate with spraying plastic.CNC processing molding,Beautiful design,Reactionless holder,easy operation
(2) Large LCD touching screen
(3) Adopt micro-computer temperature humidity controller.accuracy and reliability
(4) Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
(5) Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
(6) Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outter power cable or signal cable
(7) Adopt high quality fixed PU running wheel in the bottle of machine
(8) New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%
|Heating up time||100°C||150°C||100°C||150°C||100°C||150°C||100°C||150°C||100°C||150°C||100°C||150°C|
|Pull up time||0||-20||-40||-70||0||-20||-40||-70||0||-20||-40||-70||0||-20||-40||-70||0||-20||-40||-70||0||-20||-40||-70|
|Material||Interior material||Stainless steel plate(sus304)|
|Exterior material||Stainless steel plate(sus304)|
|Insulation material||Rigid polyauethane foam and glass wool|
|System||The wind circulation||Centrifugal fan + wide-band forced air circulation (up output and bottom input)|
|Refrigerating mode||Air-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor)|
|Refrigerator||R404A R23 U.S.A HONEYWELL|
|Heater||Iron-chrome wire heater|
|Humidifier||Stainless steel sheathed heater|
|Water supply method||Water pump out system|
|Accessories||Cable hole lid (ɸ50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp,
|Safety device||No-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices|
|Power||1ɸ3W AC220V±10% 50/60Hz 3ɸ5W AC380/415V±10% 50/60HZ|
