ISO 12947 Laboratory Electronic Fabric Martindale Abrasion Resistance Testing Machine For Textile

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ISO 12947 Laboratory Electronic Fabric Martindale Abrasion Resistance Testing Machine For Textile

Product Details:
Place of Origin: Dongguan,China
Brand Name: DahoMeter
Model Number: DH-MA-8
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Number Of Working Position: 8 Application: Fabric Martindale Abrasion And Pilling Tester
After-sale Customer Service: Yes OEM Service: Yes
Warranty: One Year Technical Support: Yes
High Light:

textile testing instruments


textile testing machine

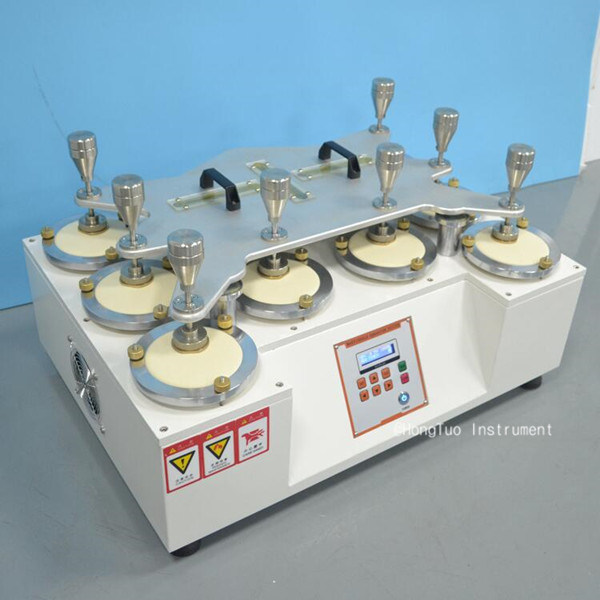

ISO 12947 Laboratory Electronic Fabric Martindale Abrasion Resistance and Pilling Testing Machine / Equipment / Method





1. Martindale abrasion tester is mainly applies to the resistance test of textile and

outside layer, lining or underlayer of the footware or the similar fabric.


2. This instrument is to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradants at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.


3. The unique design of Martindale Abrasion Resistance And Pilling Tester allows removal of individual sample holders for examination without lifting the top motion plate. Martindale tester provides individual counters and parking function, interval time settable, large touch-screen display, Standard sample holders and 9 and 12kpa Weights are included.


4. Martindale Tester is available with 4, 6, 8 test positions, and we have LCD control and Touch screen control, 2 different control models.



Main Features


  • Martindale Abrasion Resistance And Pilling Tester learns the advantages of domestic and foreign similar equipment’s design, it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
  • Computer system uses two counting methods, visual appearance, convenient setting, 6 (optional) station testing at the same time to improve test efficiency.
  • Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.
  • Variety of trajectory matching accessories, can adapt to a variety of test methods standard.


Main standards


A. The pilling degree test of fabric of GB/T4802.2, ASTM D4970, ISO12945-2 etc.

B. The wear test of fabric of GB/T13775, ASTM D4966, ISO12947 etc.





Station number 4,6,8 station (Optional)
Count display

a. Estimated counting: 0~999999 times

b. Total counting: 0~999999 times

Maximum dynamic range 24±0.5mm, 60.5±0.5mm
Weight of pressure thing

a.Gripper: 200±1g

b. Cloth samples hammer: 395±2g

c. Furniture accessories sample hammer: 594±2g
d. Stainless steel butterfly piece: 260±1g
Effective friction diameter of grinding block

A type: 200g (1.96N) friction head ¢ 28.8-0.084mm

B type: 155g (1.52N) friction head ¢90-0.10mm

The relative velocity of Gripper and the

grinding station

Weight of pressure hammer 2385±10g
Test specimen 44±1mm×4
Load 595G,795G
Counter/Timer LCD, 0-999999
Machine Size 56.5×56.5×31.5cm
Weight 40kg
Power AC220V,3A
