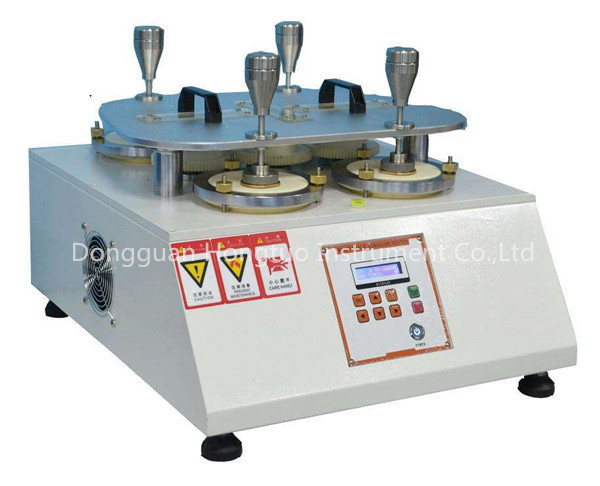

Textile Testing Equipment Electronic Martindale Abrastion Tester With 4 Heads

Textile Testing Equipment Electronic Martindale Abrastion Tester With 4 Heads
Textile Testing Equipment Electronic Martindale Abrastion Tester With 4 Heads Textile Testing Equipment Electronic Martindale Abrastion Tester With 4 Heads

Large Image :  Textile Testing Equipment Electronic Martindale Abrastion Tester With 4 Heads

Product Details:
Place of Origin: Dongguan,China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-MA-4
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Usage: Martindale Abrasion Testing Machine Testing Before Delivery: Yes
After-sale Customer Service: Yes Number Of Working Position: 4
Specimen Holder: 200±1g Load Piece For Apparel& Household Textiles: 395±2g
High Light:

textile testing instruments

,

plastic testing equipment

Electronic Martindale Abrastion Tester with 4 Heads





Quick Detail

Number of Working Position 4
Display: a.PresettingNumber 0~99999 times
  b.AccumulativeNumber 0~99999 times

Pressure Weight

(abrasion)

a.specimen holder: 200±1g
  b.load piece for apparel& household textiles 395±2g



APPLICATION:

Digital Martindale Abrasion and Pilling Machine. This instrument was developed primarily to assess abrasion resistance of woven worsted wool fabrics. It was designed to give a controlled amount of multi-directional abrasion, between the fabric surface and a crossbred wool abrading fabric, at comparatively low pressure until thread breakdown, or unacceptable change in color or appearance occurs. It is not applicable to fabrics having a long pile or surface coating.



RELATED STANDARDS:

ASTM D4966, 4970 ISO 12945.2, 12947.1 ISO 5470.2 BS3424/5690
DIN 53863 JIS L 1096 IWS TM 196,112 EN 388
GB/T 4802.2, 19089 GB/T 13775 FZ/T 20020



FEATURES:

1. Adopts microcomputer control system and large LCD(made in Chinese Taipei) display the parameters, such as number of turns, presetting rubbing times, accumulated rubbing times and working position of each head;

2. With memory function when power interrupted, and can save the data when power interrupted;

3. Sports guide plate is made by aluminum alloy, and has after sandblasting oxidation process, beautiful and endurable;

4. Rail material is made in stainless steel, easy to unload and without mechanical failure;

5. Two motion mode: rolling along Lissa-jous figure, diameter is 24mm and 60mm, respectively.

6. Multi-working position, satisfies many specimens to be tested at the same time;

7. Accumulative time for each workingposition, LCD display, accurate to control and ease to use;

8. Stainless steel load piece, artistry and durable;

9. Pre-settingstopswitch;

10. Bench top operation.



Technical characteristics:

1,Number of working position: 4,6 or 8
2,Counter range: 0~99999
3,Max stroke: horizontal: 60.5±0.5mm vertical: 24±0.5mm
4,pressure weight:

a. specimen holder:200±1g

b. load piece for apparel & household textiles:395±2g
c. load piece for workwear & upholster:594±2g

d. stainless steel plate:260±1g
5,abrader diameter :
type A 200g(1.96N) (9KPa),¢ 28.8 -0.084mm
type B 155g(1.52N)(12KPa),¢ 90 -0.10mm
6,abrader speed:50-2r/min
7,pressing weight:2385±10g
8,instrument size:885×600×410mm
9,power supply:Ac220V 50Hz 500W

10,weight:150kg
