Martindale Abrasion Testing Machine For Texile Fabric ASTM D4970

Martindale Abrasion Testing Machine For Texile Fabric ASTM D4970
Martindale Abrasion Testing Machine For Texile Fabric ASTM D4970 Martindale Abrasion Testing Machine For Texile Fabric ASTM D4970

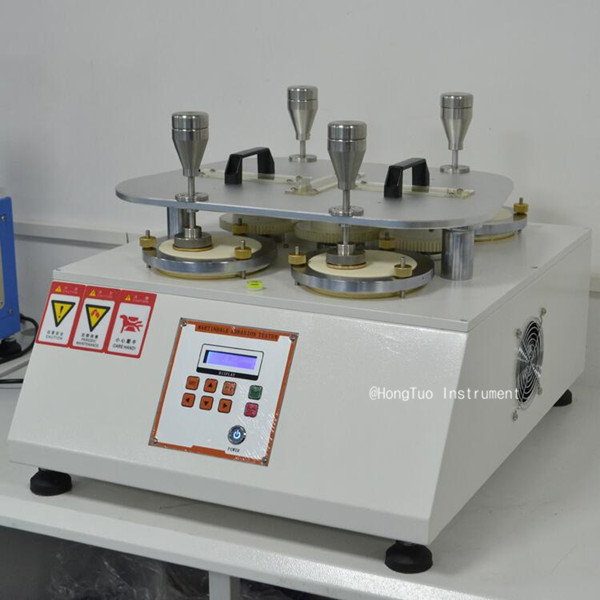

Large Image :  Martindale Abrasion Testing Machine For Texile Fabric ASTM D4970

Product Details:
Place of Origin: Dongguan,China
Brand Name: DahoMeter
Certification: ISO,SGS
Model Number: DH-MA-4
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: negotiable
Packaging Details: standard exporting wooden package
Delivery Time: 5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Usage: Martindale Abrasion Testing Device Technical Support: Yes
Warranty: 12 Months Number Of Working Position: 4
Specimen Holder: 200±1g Load Piece For Apparel& Household Textiles: 395±2g
High Light:

textile testing instruments

,

plastic testing equipment

Martindale Abrasion Testing Machine for Texile Fabric ASTM D4970





Applicable Range:



ASTM D4970 Martindale abrasion tester price is used for testing the performance of the wearing resistance,abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.



Relevant Standards:


GB/T21196(national standard technical committees) GB/T4802.2 GB/T13775 FZ/T20020
ISO12945-2 ISO12947 ASTM D4966 ASTM D4970 ASTM D3886 JIS L1096 DIN53863 DIN53865 BS3424 BS5690 BS EN388 BS EN530 IWS Tm196/ TM112 M & S



Technical characteristics:

1,Number of working position: 4,6 or 8
2,Counter range: 0~99999
3,Max stroke: horizontal: 60.5±0.5mm vertical: 24±0.5mm
4,pressure weight:

a. specimen holder:200±1g

b. load piece for apparel & household textiles:395±2g
c. load piece for workwear & upholster:594±2g

d. stainless steel plate:260±1g
5,abrader diameter :
type A 200g(1.96N) (9KPa),¢ 28.8 -0.084mm
type B 155g(1.52N)(12KPa),¢ 90 -0.10mm
6,abrader speed:50-2r/min
7,pressing weight:2385±10g
8,instrument size:885×600×410mm
9,power supply:Ac220V 50Hz 500W

10,weight:150kg
