Renishaw Probe Video Measuring Machine with SONY1 / 3" Color CCD Camera

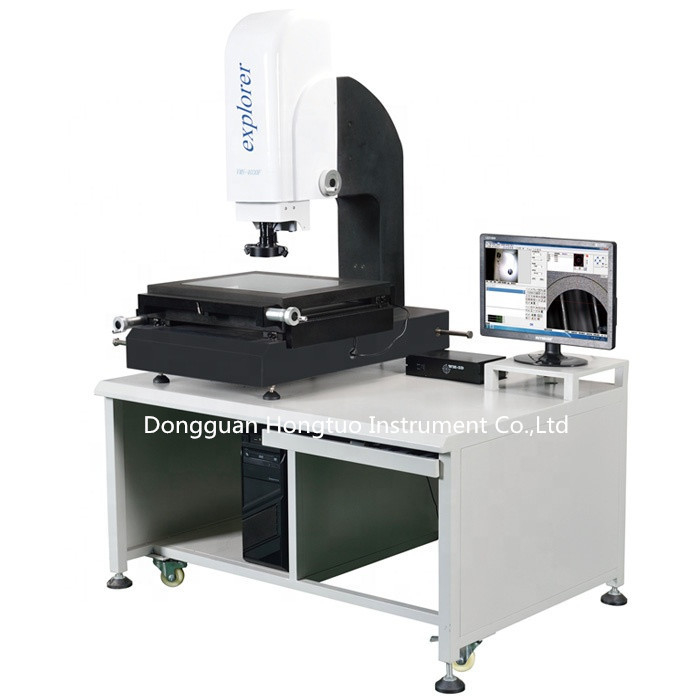

Large Image : Renishaw Probe Video Measuring Machine with SONY1 / 3" Color CCD Camera

Product Details:

Place of Origin:	Dongguan China
Brand Name:	DahoMeter
Certification:	ISO,SGS
Model Number:	DH-4030F

Payment & Shipping Terms:

Minimum Order Quantity:	one set
Price:	negotiable
Packaging Details:	standard exporting wooden package
Delivery Time:	5 to 8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300 sets per month

Contact Now

Detailed Product Description

Usage:	Video Measuring Device	Technical Support:	Yes
Good Quality Assurance:	Yes	CCD:	1/3” CCD Colour Industrial Camera
Lens:	Zoom Lens	Surface Light:	3 Rings 8octants,LED Cold Lighting
High Light:	optical measurement equipment , optical measuring instruments

Renishaw Probe Video Measuring Machine with SONY1 / 3" Color CCD Camera

Application Range

High Precision Video Measuring Machine System is a precise and effective non-contact optical measuring instrument. It is composed of a series of accessories, such as color CCD Camera & adapter, zoom lens capture card, linear scales, high precision worktable, electronic motor, PC and monitor.

The QuickMeasuring software is able to control the brightness of 40-division light source, auto-focus, X,Y and Z-axis auto-movement. TXT, Excel report output immediately, dxf drawing input quickly. The operator can setup auto-program-run in light of different measurement case foe different work pieces, it improve the operator’s working efficiency effectively and reduce the enterprise’s cost of human resource obviously.

It is mainly applied in 3D measurement field, such as: PCB, mobile phone fittings, linker, machine fitting, precision fixture, and it can measure height in video solution too.

It is a necessary instrument for 3D noon-contact measurement in college, research institute and metrology department.

Key Features

> 00 grade marble pedestal work table. Guarantee instrument has a very high stability and rigidity. (optional:import aviation aluminum work surface).

>Laser indicator Indicates the measurement position, rapid positioning.

>CCD with high quality Japanese American NAV optical Lens.

>Precision optical ruler,resolution of 0.5um,repeat accuracy of 0.001mm.

>Powerful measurement software

>Optional HD ITO/TFT special conductive film imported lenses CCD optional English RENISHAM touch probe group

Renishaw Probe Video Measuring Machine with SONY1 / 3" Color CCD Camera 0
